Audi TT Roadster 2016Controls and display... View of cockpit

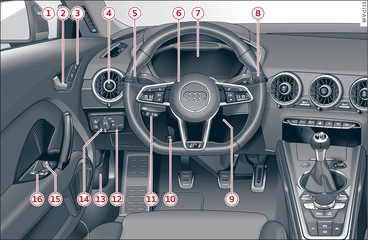

Fig. 1 Front cabin: Left side
Fig. 1 Front cabin: Left side

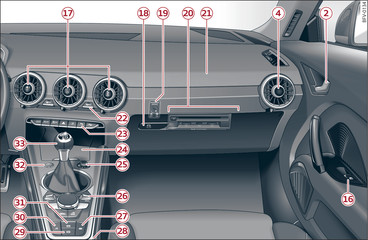

Fig. 2 Front cabin: Right side
Fig. 2 Front cabin: Right side
-1- Side assist warning lamp
-2- Door handle
-3- Central locking switch
-4- Air outlet with control for seat heating
-5-
Control lever for:
-6-
Multi-function steering wheel with:
  • Horn
  • Driver s airbag
  • Controls for virtual instrument cluster including driver information system, audio/video, telephone, navigation system and speech dialogue system
  • Paddle levers
-7- Audi virtual cockpit (instrument cluster)
-8- Control lever for windscreen wipers and washer
-9- Starting the engine after a malfunction
-10- Adjustable steering column
-11- Control lever for cruise control system
-12- Instrument lighting
-13- Bonnet lock release
-14- Light switch
-15- Electric adjuster for exterior mirrors
-16- Electric windows
-17- Air outlet with control for air conditioner
-18- Lockable glove box
-19- Deactivating passenger s airbag
-20- Drives for CD, DVD and SIM/SD cards
-21- Passenger s airbag
-22- Switch for rear window heating
-23-
Depending on equipment fitted, buttons for:
-24-
Centre console with optional equipment:
-25- On/off button for infotainment system
-26- Infotainment control console
-27- Switch for windbreak
-28-
Depending on equipment fitted:
-29- Hold assist
-30- Switch for opening and closing soft top
-31- Parking brake
-32-
Depending on equipment fitted, buttons for:
-33-
Depending on equipment fitted:
Note
  • Some of the items of equipment listed in this section are only fitted on certain models or are optional extras.
  • The arrangement of switches and controls on right-hand drive models* may be slightly different from the layout shown on link. However, the symbols used to identify the controls are the same.
