Applies to: vehicles with AUX input/USB charging socket
You can charge the batteries of your mobile devices using the USB charging socket. You can connect mobile devices using the analogue AUX interface.
-

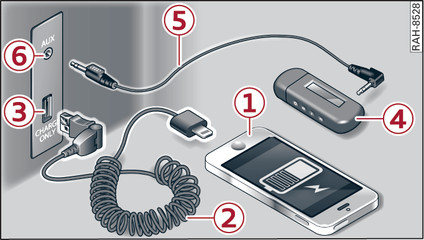

- Fig. 173 USB charging socket and AUX input
The AUX input and the USB charging socket are located in the storage compartment in the centre console -24- Fig. ►.
AUX input
- To connect a mobile device to the AUX input: Connect the cable -5- Fig. 173► to the AUX input -6- before connecting the mobile device -4- (e.g. MP3 player, smartphone).
- To disconnect the mobile device from the AUX input: Detach the cable -5- Fig. 173► from the AUX input.
- Operation: Select and confirm the source External audio player -5- Fig. ►. Media are started and operated using the mobile device -4- Fig. 173►.
USB charging socket
- USB adapters: You can charge your mobile device s battery using special USB adapters. The USB adapters are available from Audi dealers or specialist retailers. Refer to link►.
- To charge a mobile device using a USB adapter: Connect your mobile device -1- Fig. 173► to the charging socket -3- using the appropriate USB adapter -2-.
- To disconnect the USB adapter from the charging socket: Detach the USB adapter -3- Fig. 173► from the USB charging socket.
- To disconnect mobile devices with Apple dock connector: With the release tabs -3- Fig. ► pressed, detach the Apple dock connector from the Apple device.
WARNING
Today s driving conditions require your full attention. As the driver, you have full responsibility for the safety of the vehicle and other road users. Never use mobile devices while the vehicle is moving - risk of accident!
CAUTION
- To avoid damaging the connection on the Audi music interface, please take care when unplugging the connector from the AUX input or the USB charging socket.
- Very high or very low temperatures (a common occurrence in a car s interior) can cause damage to mobile devices and/or impair their performance. Please do not leave your mobile devices in the vehicle when the temperature is very high or very low.
Note
- When you switch off the ignition, the USB ports will continue to be supplied with power as long as the energy management system does not intervene.
- USB charging sockets marked CHARGE ONLY cannot transfer data and are intended for charging only.
- Do not use any additional USB extension cables or adapters when connecting mobile devices which must be connected to the USB charging socket -3- Fig. 173► via a USB adapter (link►); this could cause performance issues.
- The AUX adapter cable is available from Audi dealers or specialist retailers.
- USB hubs are not supported.
- Please refer to the operating instructions of your mobile device for important information on its operation.
- It cannot be guaranteed that all mobile devices will function without any problems.
- Using a mobile device with the engine switched off will drain the vehicle s battery.
- Audi recommends setting the volume of a mobile device connected to the AUX input to about 70 % of maximum.
