►Audi TT Roadster 2016►Setting off ►Soft top (fold... ◀Soft top

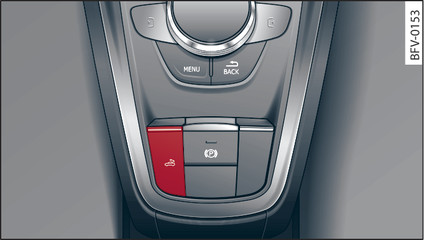

Fig. 30 Centre console: Soft top control switch
Fig. 30 Centre console: Soft top control switch
Opening and closing the soft top
Switch on the ignition.
To open/close the soft top, pull/press and hold the switch until the operation is complete.
Opening and closing the soft top (one-touch function)
Switch on the ignition.
Briefly pull/push the soft top switch to open/close the soft top completely. It is not necessary to hold the switch. The one-touch function is available at speeds of between 6 km/h and 50 km/h.
The status of the soft top is shown in the instrument cluster when the soft top switch is operated.
If the soft top does not open/close when you operate the switch, a message will appear link►.
WARNING
  • When operating the soft top make sure that external factors, e.g. wind, do not affect the function of the soft top and do not inconvenience or endanger other road users.
  • Never drive with the soft top not correctly locked in place. There is a danger that the fabric could be caught by the airstream and blown open. This could cause an accident, possibly resulting in personal injury or damage to the car.
  • When opening and closing the soft top, make sure there is no risk of injury from the moving parts of the frame, etc.
  • Since the rearward view is obstructed while the soft top is opening or closing, you should avoid operating the soft top when reversing.
CAUTION
  • To prevent damage to the soft top:
    • Do not put any items in the soft top storage box.
    • Always ensure that there is sufficient clearance above the soft top when opening or closing it.
Note
  • To avoid draining the vehicle battery, do not operate the soft top repeatedly with the engine switched off.
  • A message will be displayed in the instrument cluster if a soft top malfunction occurs link►.
  • The soft top can also be operated manually in the event of a malfunction link►. The cause of the fault should be traced and rectified by a qualified workshop as soon as possible.
  • If you park the car with the soft top open, remember that this leaves the interior exposed to intruders and to potential damage in sudden adverse weather. Lock any belongings you leave behind in the luggage compartment. Close the soft top before you leave the vehicle unattended.
  • The windows in the doors are automatically lowered slightly while the soft top is opening/closing.
