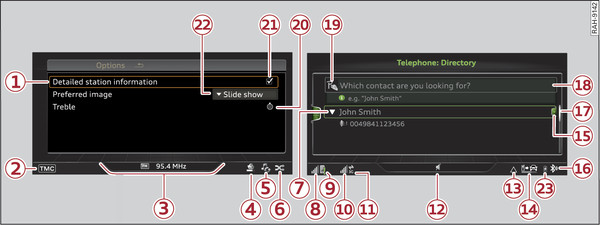

-1-

Selected option

Selected function

-2-

TMC

Reception of TMC/online traffic information link►

-3-

Entertainment drawer

Information on the media source currently selected or an event (e.g. a call) is displayed. Depending on the vehicle s equipment, you may be able to operate functions (e.g. tuning to a radio station, answering a call) via the open entertainment drawer link►

-4-

Jukebox^* import process

Copying audio/video files to the jukebox link►

-5-

Repeat track

The track currently playing will be repeated link►

-6-

Random playback

All tracks in the playlist will be played in random order link►

-7-

Arrow

Information can be called up by pressing the rotary pushbutton when text is highlighted

-8-

Signal strength bars for telephone

Reception strength for the telephone

-9-

Exclamation mark on the telephone

Indicates missed calls

-10-

Signal strength bars for data connection^*

Reception strength of the active connection, or
PIN: Enter the PIN code
PUK: Enter the PUK code
SIM: Insert the SIM card

-11-

2G/3G/LTE^*

Network coverage of the active connection link►
2G: GSM network
3G: UMTS network
LTE^*: LTE network

-12-

Mute function

Audio source muted link►

-13-

Roaming

Connected mobile phone/SIM card has left its mobile network

-14-

Import procedure

Import/update of contacts in the directory/call list

-15-

Options menu^*

Select and confirm specific functions for individual menu items and make changes to settings.

-16-

Bluetooth^*

Bluetooth device connected link►/link►

-17-

Scrolling bar

Indicates a long list
You can move within lists by turning the rotary pushbutton

-18-

Entry field

Entries that can be changed using the speller for letters/numbers link► or the MMI touch pad^* link►

-19-

MMI touch^*

Can be used via the MMI touch pad^*

-20-

Rotary control

Settings for the selected function can be made by turning the rotary pushbutton

-21-

Checkbox

You can switch certain functions on or off by pressing the rotary pushbutton

-22-

Selection list

Settings for the selected function that can be called up by pressing the rotary pushbutton

-23-

Battery^*

Battery charge level of the connected mobile phone during wireless charging
