Applies to: vehicles with telephone
-

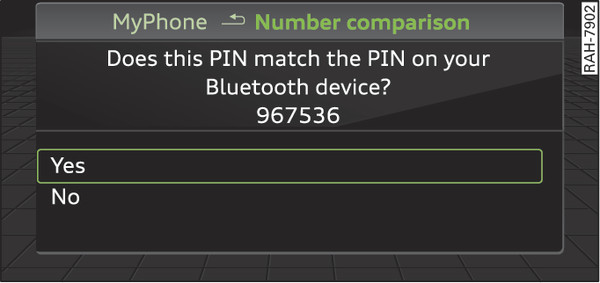

- Fig. 223 PIN display for entry on mobile phone
Important
The vehicle must be stationary, and the ignition must be switched on.
The Bluetooth settings must be open on your mobile phone during the connection procedure.
The Bluetooth function and the discoverability option of the MMI system link► and the mobile phone must be activated.
The mobile phone you would like to connect must not be connected to any other Bluetooth device.
The MMI must not be connected to a mobile phone.
A mini SIM card must not be inserted in the SIM card reader*.
Select: MENU button > Telephone > Connect mobile phone > Find new devices > Continue. The available Bluetooth devices will be shown on the infotainment display. Or: Select: MENU button > Settings > left control button > MMI settings > Connection manager link►.
Select and confirm the desired mobile phone from the list of Bluetooth devices shown.
The MMI will generate a PIN for the connection Fig. 223►.
Select and confirm Yes.
Enter the PIN to establish a connection on your mobile phone. Or: If the PIN is already being displayed on your mobile phone, confirm it on the phone and on the MMI. You have about 30 seconds to enter the PIN.
You may need to enter the PIN for your SIM card in the MMI1).
Please note any additional system queries on your mobile phone, e.g. whether the phone should connect automatically in the future. On some mobile phones, you may also need to download the directory and allow access to your messages separately.
After connecting successfully
After connecting successfully, you will be shown information on the profiles used to establish the connection. You can make changes to the profiles by selecting the MENU button > Settings > left control button > MMI settings > Connection manager link►. This can also be done at a later time.
In addition, the contacts on the mobile phone are automatically loaded into the directory of the MMI. This may take several minutes, depending on how many contacts are stored on the mobile phone.
Applies to: vehicles with Audi connect (infotainment)
If you have successfully connected your mobile phone to the MMI via the Bluetooth remote SIM Access Profile, you can use either the embedded SIM card 2) or your own SIM card to use Audi connect infotainment services.
Confirm the system query with either Yes or No. For more information on Audi connect (infotainment), please refer to link►.
Yes: All data connections for all Audi connect infotainment services will be established by a mobile network provider via the embedded SIM card2) link►. Your mobile phone will be connected via Handsfree only link►, and you will not be able to use the car telephone function* link►.
No: All data connections for all Audi connect infotainment services will use your own SIM card. All connections via the embedded SIM card2) will be disconnected, and you will be able to use the car telephone function* link►.
You can now use Audi connect infotainment services.
Applies to: vehicles with Audi connect (infotainment)
You can configure your vehicle s mobile Wi-Fi hotspot*3) and the Audi connect infotainment services* immediately after connecting an rSAP-enabled mobile phone link►. Or: Select TEL button > right control button > Connection manager > right control button > Wi-Fi settings.
Using the function Store as default telephone in the Connection manager, you can store one of your connected mobile phones as the default phone link►.
CAUTION
Please always observe the information ►.
Note
- You can adjust further settings for connected mobile phones using the connection manager link►.
- You can also search for the MMI system via the Bluetooth device search function on your mobile phone.
- Bluetooth devices only have to be bonded once. Any devices that have already been bonded to the MMI system are connected automatically when the Bluetooth function is switched on, the devices are within range of the car and the ignition is on. The mobile phone last connected is given priority.
- You will need to authorise the MMI connection on your mobile phone to enable automatic connection.
- Please note any system queries on your mobile phone, e.g. whether the phone should connect automatically in the future. On some mobile phones, you may also need to download the directory and allow access to your text messages separately.
- You receive the SIM PIN code from your mobile network service provider together with the SIM card. If you enter the SIM PIN code incorrectly three times4) in a row, the SIM card will be blocked. A PUK (personal unblocking key) must be entered in order to reactivate the SIM card.
- The Bluetooth connection between the system and the mobile phone is automatically terminated when you leave the car. Depending on the mobile phone, telephone calls may be transferred automatically from the MMI to your mobile phone so that you can continue talking.
- For further information regarding your mobile phone, contact your mobile network service provider or refer to the operating instructions for your mobile phone. For information on using a phone in your car, please go online (e.g. www.audi.com/bluetooth) or ask an Audi dealer.
- (Applies to vehicles without additional phone: ) You can bond several mobile phones to the MMI system; however only one connection is active at a time.
- (Applies to vehicles without additional phone: ) Any Bluetooth device that is already connected to the MMI system is disconnected when another device is connected to the system.
