Applies to: vehicles with plug-in hybrid drive and special charging cable
-

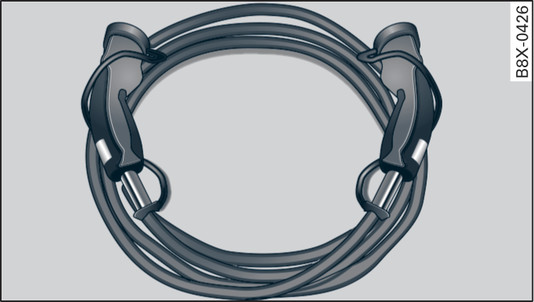

- Fig. 113 Charging cable for public charging stations (example)
Use only the original Audi charging cable Fig. 113► to charge the vehicle at a public charging station. For more information, contact a qualified workshop.
Always stow the charging cable in the bag link► prior to transport.
To charge the high-voltage battery, follow the instructions at the charging station.
If necessary, unlock the vehicle link►.
Ensure that the selector lever is in position P and the drive system is deactivated.
To open the cover on the charging unit, press the right side of the cover Fig. ►.
Pull the cap off the charging connection Fig. ►.
Remove the protective caps on the charging cable.
Connect the cable to the charging station and to the charging connection on the vehicle.
If no charging timer is set, the charging process should start automatically (this is controlled by the charging station) link►.
The vehicle status is indicated by an LED -2- link►.
CAUTION
Do not use the cable Fig. 113► as an extension cable for the Audi e-tron charging system, as this would impair the charging process.
Note
Only charging stations which meet the following standards (depending on the country) can be used to charge the vehicle:
- GB/T 18487.1 and GB/T 20234 (China)
- IEC 61851 and IEC 62196 (Europe)
- SAE J1772 (North America, Japan)
Note
- On some charging stations it is not possible to use the charging timer.
- If the charging station has a domestic or industrial connection, you can use your Audi e-tron charging system.
- Only public charging stations that comply with the “new GB standard”1) can be used to charge the vehicle. For more information, contact a qualified workshop.
