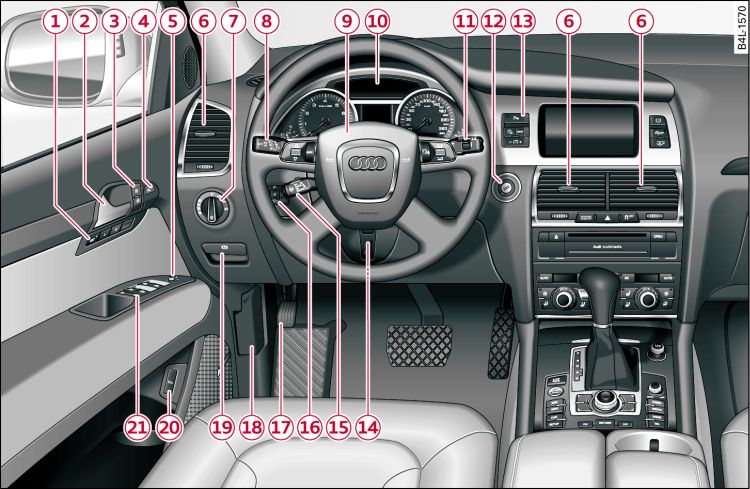

- Fig. 1 Front cabin: Left side

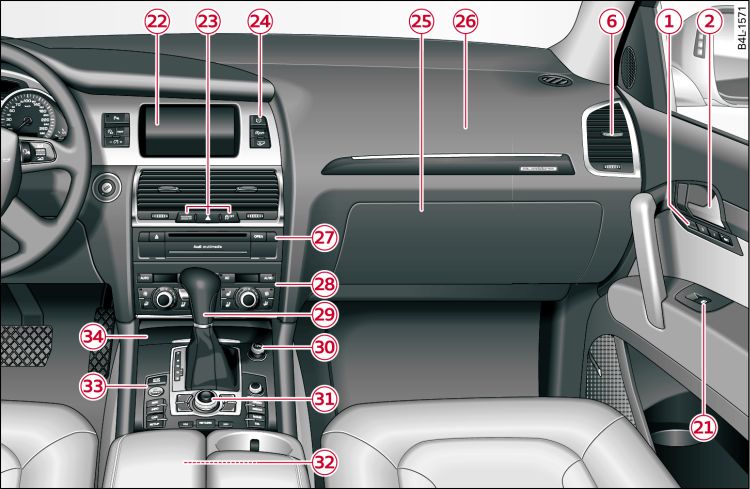

- Fig. 2 Front cabin: Right side
| -1- | Recall buttons |
| -2- | Door handle |
| -3- | Central locking switch |
| -4- | Button for Audi side assist |
| -5- | Electric adjuster for exterior mirrors |
| -6- | Air outlets with thumbwheel |
| -7- | Light switch |
| -8- |
Control lever for:
|
| -9- |
Steering wheel with:
|
| -10- | Instrument cluster |
| -11- |
Control lever for:
|
| -12- | Ignition lock |
| -13- |
Controls for:
|
| -14- |
Adjustable steering column, depending on equipment fitted:
|
| -15- |
Control lever for:
|
| -16- | Headlight range control |
| -17- | Pedal for applying parking brake |
| -18- | Bonnet lock release |
| -19- | Parking brake release lever |
| -20- | Switch for releasing the boot lid |
| -21- | Electric windows |
| -22- | MMI display |
| -23- |
Switch/warning lamp for:
|
| -24- |
Controls for:
|
| -25- | Glove box |
| -26- | Front passenger's airbag |
| -27- | Audi multimedia |
| -28- | Deluxe automatic air conditioner |
| -29- | Selector lever for automatic gearbox |
| -30- | 12 Volt socket |
| -31- | MMI control console |
| -32- | Storage compartment or CD changer |
| -33- | START ENGINE/STOP ENGINE button |
| -34- | Ashtray and cigarette lighter
|
Note
- Some of the items of equipment listed in this section are only fitted on certain models or are optional extras.
- Please refer to the separate operating manual for instructions on using the Multi Media Interface (MMI).
- The arrangement of switches and controls on right-hand drive models* may be slightly different from the layout shown on Link. However, the symbols used to identify the controls are the same.
