►Audi A3 - 2016►Setting off ►Doors and windows ◀Boot lid
Applies to: vehicles with manual release on inside

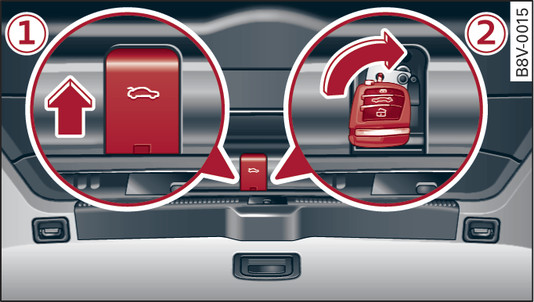

Fig. 29 Applies to: version 1 Detail of inside of boot lid: Access to manual release
Fig. 29
Applies to: version 1
Detail of inside of boot lid: Access to manual release

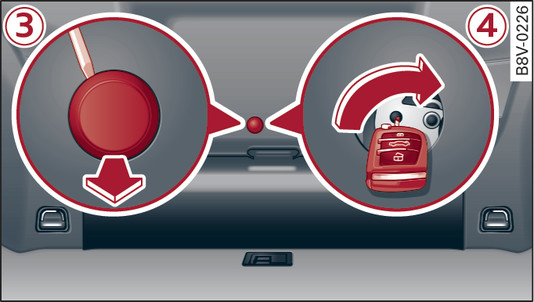

Fig. 30 Applies to: version 2 Detail of inside of boot lid: Access to manual release
Fig. 30
Applies to: version 2
Detail of inside of boot lid: Access to manual release
The boot lid can be released manually from the inside.
Applies to: version 1
Fold the rear seat backrest forwards link► .
Use the blade of the ignition key to prise off the cover -1- Fig. 29► .
Insert the key in the opening behind the cover -2- and press the key in the direction of the arrow until the boot is unlocked.

Applies to: version 2
Fold the rear seat backrest forwards link► .
Take the screwdriver out of the vehicle tool kit link► . Use the flat-blade side of the reversible insert.
Use the screwdriver to prise off the cover -3- Fig. 30► .
Insert the key in the opening behind the cover -4- and press the key in the direction of the arrow until the boot is unlocked.
