Applies to: vehicles with tool kit/tyre repair kit/compressor
-

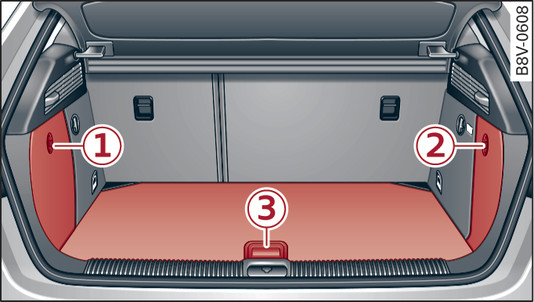

- Fig. 322 Luggage compartment (example): Stowing the tools, tyre repair kit and jack*
-

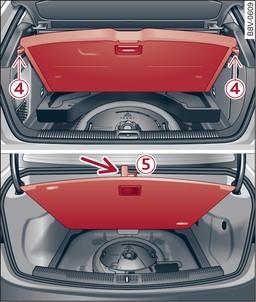

- Fig. 323 Luggage compartment (examples): Floor panel folded up (versions 1 and 2)
Plug-in hybrid drive*:
The stowage location is different link►
.
Tools, floor panel and side trim
Applies to: vehicles with version 1
The tools, tyre repair kit* and compressor* are stowed in the luggage compartment. Some equipment is stowed behind the side trim -1-* or -2- and some under the floor panel -3- Fig. 322►
.
To open the side trim, turn the catch and remove the cover -1-*/-2-
Fig. 322►
.
Lift the floor panel up by the plastic handle -3- until the panel is fixed in position behind the retaining tabs -4- on the two side sections Fig. 323►
(top illustration).
Replace the floor panel before closing the boot lid.
Tools and floor panel
Applies to: vehicles with version 2
The tools, tyre repair kit* and compressor* are stored under the floor panel -3- Fig. 322►
in the luggage compartment.
Engage the plastic hook -5- on the luggage compartment seal Fig. 323►
.
Replace the floor panel before closing the boot lid.
Note
The jack* in your vehicle is maintenance-free.
