Applies to: vehicles with folding backrest
The backrests can be folded down separately* or together.
-

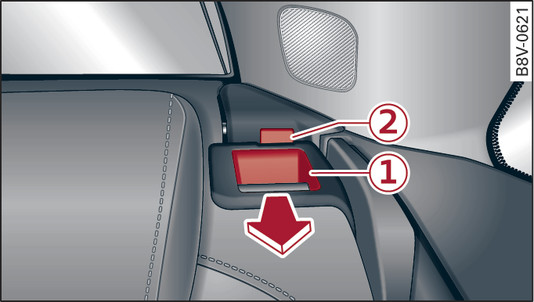

- Fig. 83 Backrest: Outer release lever (example)
Folding outer backrest up/down
Slide the head restraint(s) downwards link►
.
Pull the release lever -1-
Fig. 83►
in the direction indicated by the arrow and fold down the backrest.
Push the backrest up until it engages securely ►. The red marking on the tab -2- should no longer be visible when the backrest is properly secured.
Folding centre backrest up/down*
Please note the information on link►
.
- Make sure that the rear backrest is securely locked in position so that the seat belt can provide proper protection in the rear seats.
- The rear backrest must always be securely latched so that objects stored in the luggage compartment will not fly forward during sudden braking.
CAUTION
- If you need to adjust the front seats when either of the rear backrests is folded forwards, please take care to avoid damaging the rear head restraints. If necessary, remove the appropriate head restraints before you slide back the front seats.
- Lower the rear head restraints before you fold down the backrest ► - risk of damage!
- When returning the backrest to an upright position, make sure that the seat belts for the outer rear seats are not caught up and damaged in the catches for the backrest.
