Applies to: vehicles with load-through hatch
-

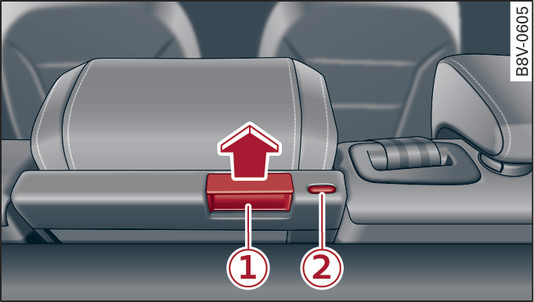

- Fig. 84 Applies to: version 1Backrest: Releasing the load-through hatch
-

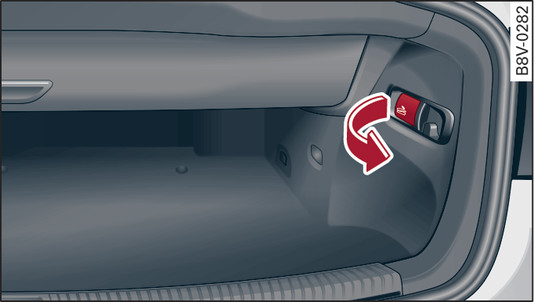

- Fig. 85 Applies to: version 2Luggage compartment: Release lever in luggage compartment (example, right side)
Opening/closing the load-through hatch
Applies to: version 1
The load-through hatch can be opened from the passenger compartment or from the luggage compartment.
To open the load-through hatch, pull the top release lever -1-
Fig. 84►
and fold down the backrest.
To close the load-through hatch, push the backrest up until it engages securely ►. The red marking on the tab -2- should no longer be visible when the backrest is properly secured.
Opening the load-through hatch from the luggage compartment
Applies to: version 2
The backrests can be folded down separately.
To fold down the backrest, pull the release lever on the appropriate side Fig. 85►
in the direction indicated (arrow). The backrest will fold forwards automatically when released ►.
To close the load-through hatch, push the backrest up until it engages securely ►.
- Make sure that the rear backrest is securely locked in position so that the seat belt can provide proper protection in the rear seats.
- The rear backrest must always be securely latched so that objects stored in the luggage compartment will not fly forward during sudden braking.
- Make sure that all objects transported in the load-through hatch are secured. They can be catapulted through the passenger compartment in case of a sudden braking manoeuvre - risk of injury!
- Cover any sharp edges on the objects you transport to ensure that they do not cause any damage.
- When releasing the backrest, please make sure that no persons or animals are in its path. The backrest will fold forwards automatically when released.
CAUTION
When returning the backrest to an upright position, make sure that the seat belts for the outer rear seats are not caught up and damaged in the catches for the backrest.
