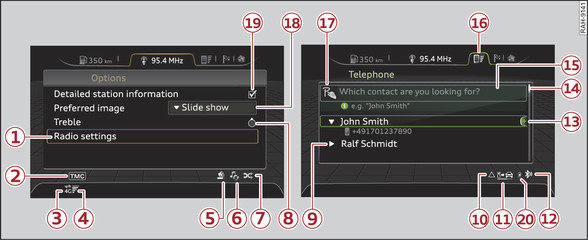

-1-

Selected option

Selected function

-2-

TMC

Reception of TMC/online traffic information link►

-3-

2G/3G/LTE^*

Network coverage of the active connection link►
2G: GSM network
3G: UMTS network
LTE^*: LTE network
When a data connection has been established, a symbol indicating the active data connection link► appears in the status line of the infotainment display

-4-

Signal strength bars for data connection^*

Reception strength of the active connection, or
PIN: Enter the PIN code
PUK: Enter the PUK code
SIM: Insert the SIM card link►

-5-

Jukebox^* import process

Copying audio/video files to the jukebox^* link►

-6-

Repeat track

The track currently playing will be repeated link►

-7-

Random playback

All tracks in the playlist will be played in random order link►

-8-

Rotary control

Settings for the selected function can be made by turning the rotary pushbutton

-9-

Arrow

Information can be called up by pressing the rotary pushbutton

-10-

Roaming

Connected mobile phone/inserted mini SIM card has left its mobile network

-11-

Import procedure

Import/update of contacts in the directory/call list

-12-

Bluetooth^*

Bluetooth device connected link►/link►

-13-

Options menu

Select and confirm specific functions for individual menu items and make changes to settings

-14-

Scrolling bar

Indicates a long list
You can move within lists by turning the rotary pushbutton

-15-

Entry field

Entries that can be changed using the speller for letters/numbers link► or the MMI touch pad^* link►

-16-

Signal strength bars for mobile phone^*

Reception strength of mobile phone network of a connected mobile phone link►

-17-

MMI touch^*

Can be used via the MMI touch pad^*

-18-

Selection list

Settings for the selected function that can be called up by pressing the rotary pushbutton

-19-

Checkbox

You can switch certain functions on or off by pressing the rotary pushbutton.

-20-

Battery^*

Battery charge level of the connected mobile phone during wireless charging link►
