Applies to AudiTTs: with parking system plus
-

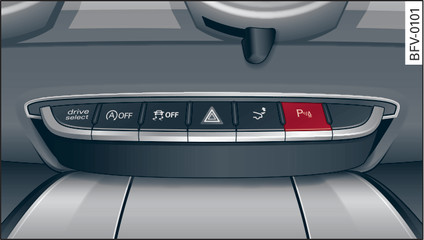

- Fig. 106 Centre console: Button for parking aid
-

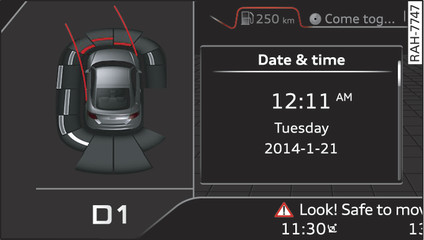

- Fig. 107 Proximity graphic (AudiTTs with park assist*)
Switching on
Engage reverse gear, or
Press the
button in the centre console Fig. 106►. You will hear a brief acknowledgement tone and the LED in the button will light up.
button in the centre console Fig. 106►. You will hear a brief acknowledgement tone and the LED in the button will light up.Automatic activation
The parking aid is activated automatically when the AudiTT approaches an obstacle from a distance of approx. 90 cm at speeds below 10 km/h. You will hear the warning beeps when the obstacle is within a distance of approx. 50 cm.
Switching off
Drive forwards faster than 10 km/h, or
Press the
button, or
button, or
Switch off the ignition.
Segments in the graphic display
You can estimate the distance to an obstacle by referring to the segments in front of and behind the AudiTT (AudiTTs with parking system plus*) or the segments surrounding the AudiTT (AudiTTs with park assist*) Fig. 107►. The red lines indicate the anticipated path of the AudiTT, depending on the steering wheel angle. A white segment indicates an obstacle that has been detected beyond the path of travel. Red segments represent objects detected within the path of travel. The closer the AudiTT gets to the obstacle the closer the segments move towards the AudiTT in the graphic. At the latest when the penultimate segment is highlighted the AudiTT has reached the danger (collision) zone. Obstacles within the danger (collision) zone are shown in red, even if they are beyond the path of travel. Stop moving immediately ►, ►!
