Audi Q5Driver assistanc... Parking aidsSurround view camera...
Applies to: vehicles with surround view cameras
This view can be used when parking your vehicle in a garage or parking bay.

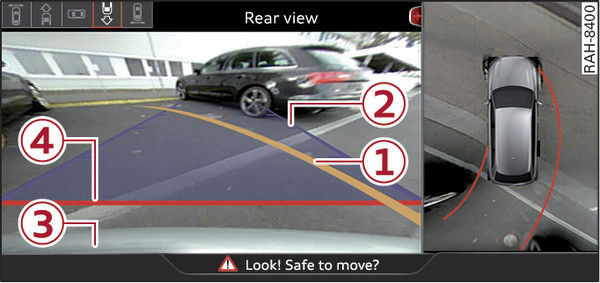

Fig. 155 Infotainment display: Approaching a parking space
Fig. 155 Infotainment display: Approaching a parking space

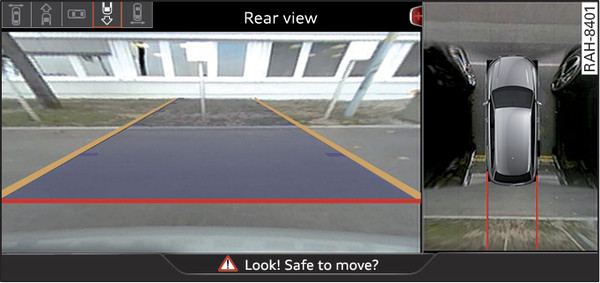

Fig. 156 Infotainment display: Aligning the vehicle
Fig. 156 Infotainment display: Aligning the vehicle
Switch on the infotainment system and select reverse gear.
The orange orientation lines -1- represent the path of the vehicle. Turn the steering wheel until the orange orientation lines are pointing towards the parking space Fig. 155. You can estimate the distance to an obstacle by referring to the markings -2-. Each marking is equivalent to approx. 1 metre. The blue marking is an extension of the vehicle outline and reaches about five metres to the rear of the vehicle.
Reverse into the space and adapt the steering angle to the parking space, using the orange lines to assist you , . -3- represents the rear bumper. You should stop reversing, at the latest, when the red orientation line -4- is bordering on an obstacle !
