Applies to: vehicles with surround view cameras
-

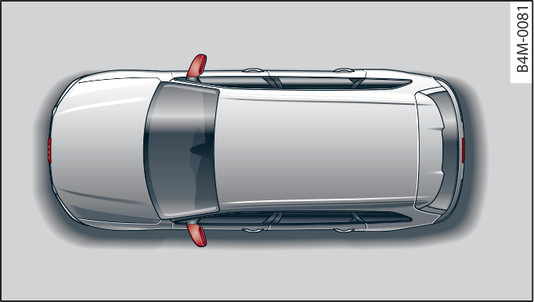

- Fig. 148 Location of surround view cameras
The four surround view cameras are located in the radiator grille, in the boot lid and on both exterior mirrors
Fig. 148►.
Please ensure that the lenses of the cameras are kept free of stickers, deposits and any other substances which could impair the function of the system. Notes on cleaning link►.
In overhead view mode, black edges are shown on the vehicle s silhouette. Objects in these areas are outside the camera s field of vision and are not detected.
- Please observe the safety warnings ►.
- For safety reasons, you should not use the system if the position or installation angle of any of the cameras have been changed, e.g. due to an accident. Have it checked by a qualified workshop.
- Please note that the display will be incorrect if the exterior mirror housing is knocked out of position.
- Only use the views from the camera at the rear of the vehicle when the boot lid is completely closed. Please make sure that there are no objects mounted to the rear end of the vehicle which could limit the view of the reversing camera.
- The overhead view is composed from the camera pictures. A graphical image of the vehicle is superimposed on the display by the system. Objects and obstacles above the camera are not displayed.
- Camera lenses enlarge and distort the field of vision. Objects on the screen are modified and depicted inaccurately.
- (Applies to vehicles with air suspension: ) The accuracy of the orientation lines and the blue area markings decreases if the vehicle is raised/loweredlink►.
- Please observe the safety warnings ►.
- The infotainment display shows the path of the rear end of the vehicle if you were to reverse using the current steering angle. Please note that the front end of the vehicle swings out further than the rear. Please make sure you keep a sufficient distance between the vehicle and any obstacles to make sure that the exterior mirror or edge of the vehicle do not collide with the obstacles.
Note
- If one of the symbols
/
/
appears and the corresponding display zone is greyed out, the exterior mirrors have been retracted electrically or one of the front doors or boot lid is open.
- There is no rear or side* distance warning if the system detects that a trailer is being towed. However, the system will still give a warning when obstacles are detected while driving forwards. The proximity graphic will switch over to towing mode. The image of the reversing camera will then be shown without orientation lines and blue area markings. If the towing bracket is not factory-fitted the functions may not be switched off automatically.
