Applies to: vehicles with load retention set
The load retention set prevents objects from sliding around the luggage compartment.
-

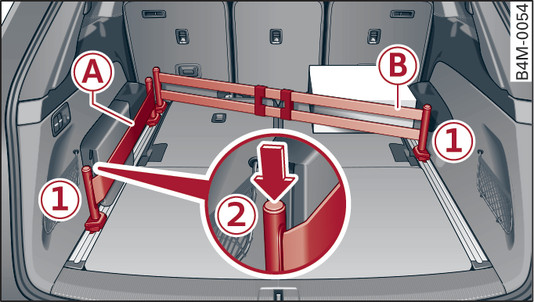

- Fig. 81 Luggage compartment: Load retention set
Ensure that the backrests are upright and the load guard is hooked in place link►.
Installing the retaining strap -A-
Attach the fastening rings link►.
Press the pushbutton -2- on the posts -1- and place them over the fastening rings.
Make sure that the posts are properly engaged.
Slide the fastening rings to bring the retaining strap into the desired position link►.
To tension the retaining strap, press the pushbutton -2-.
Installing the telescopic bar -B-
Attach the fastening rings link►.
Press the pushbutton -2- on the posts -1- and place them over the fastening rings.
Make sure that the posts are properly engaged.
Slide the fastening rings to bring the telescopic bar into the desired position link►.
Press and hold down the pushbutton -2- on the post -1- with one hand while sliding the lower part to the desired position with the other hand.
Make sure that the posts are properly engaged.
