Audi Q5Setting off Storage and conveni...Luggage compartment
Applies to: vehicles with fastening rings and stretch net

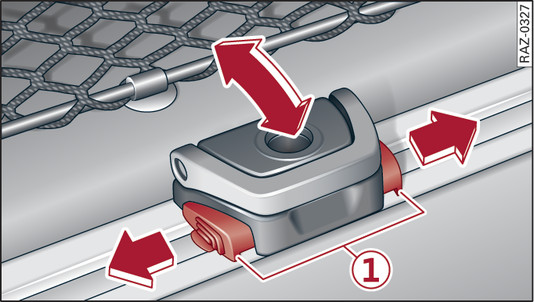

Fig. 79 Luggage compartment: Adjustable fastening rings (example)
Fig. 79 Luggage compartment: Adjustable fastening rings (example)

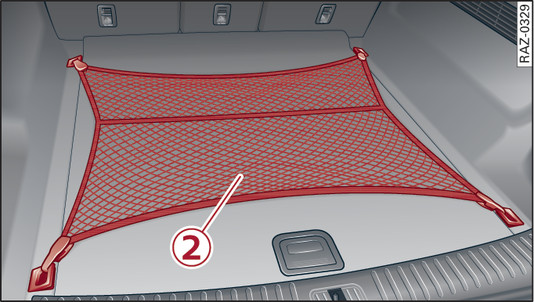

Fig. 80 Luggage compartment: Stretch net attached (example)
Fig. 80 Luggage compartment: Stretch net attached (example)
Fastening rings
There are fastening rings in the luggage compartment which can be used to secure luggage and other objects.
Use the fastening rings to secure items in the luggage compartment.
Adjustable fastening rings
Applies to: vehicles with adjustable fastening rings
To install the fastening rings, press the buttons on both sides -1- and secure the fastening rings to the rail.
To move the fastening rings, press the buttons on both sides and slide the rings to the desired position. It is important that the rings engage.
To remove the fastening rings, press the buttons on both sides and take the fastening rings off the rail.
Stretch net
Applies to: vehicles with stretch net
Use the stretch net -2- to secure light items in the luggage compartment.
Fold up the clips on the fastening rings.
Insert the hooks of the stretch net into the fastening rings.
WARNING
  • Loose objects can be flung around in the passenger compartment in the event of sudden driving or braking manoeuvres - risk of accident! Always stow objects safely in the luggage compartment and secure them on the fastening rings. Use suitable securing straps when transporting heavy objects.
  • If items of luggage or other objects are secured to the fastening rings with inappropriate or damaged tensioning straps, injuries could result in the event of sudden braking or a collision.
  • Never secure a child restraint system to the fastening rings.
