Applies to: vehicles with electric seat adjustment
-

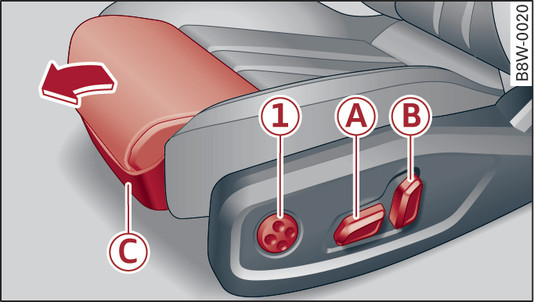

- Fig. 55 Front seat: Adjuster controls (version A)
-

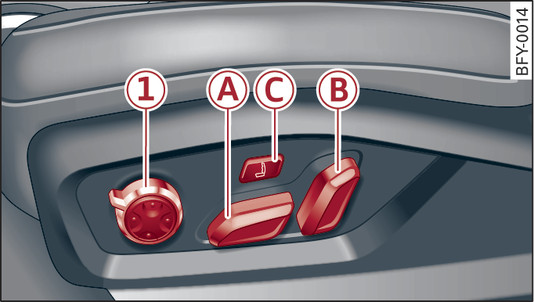

- Fig. 56 Front seat: Adjuster controls (version B)
-A- - Seat forwards/backwards: Press the button forwards/backwards.
-A- - Seat height: Press the button up/down. To adjust the front of the seat cushion, press the front of the button up/down. To adjust the rear of the seat cushion, press the rear of the button up/down.
-B- - Backrest angle: Press the button forwards/backwards.
-C- - Thigh support* out/in
Fig. 55►.
Lift the handle. The thigh support will spring forward.
-C- - Massage function* on/off
Fig. 56►.
Use the multi-function button* to select the type of massage link►.
-1- - Lumbar support* or multi-function button* link►.
To adjust the lumbar support, press the appropriate side of the button.
- The electric front seat adjustment also works when the ignition is off. To avoid accidental injuries, never leave children unattended in the vehicle.
- Never adjust the driver s seat when the vehicle is moving - this could lead to an accident.
- Be careful when adjusting the seat height. Careless or uncontrolled use of the height adjustment can cause injuries.
- Do not drive with the backrests of the front seats reclined too far as otherwise the seat belts and airbags could fail to restrain the occupants properly in an accident, possibly leading to injury.
