Applies to: vehicles with multi-function button
You can make various adjustments to the seats using the multi-function button.
-

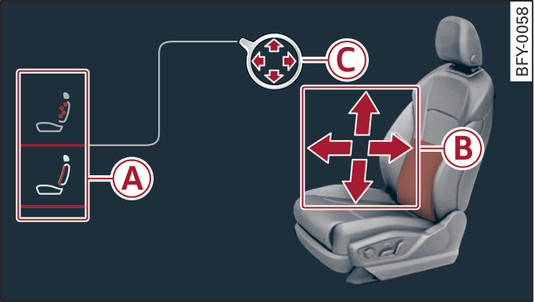

- Fig. 57 Infotainment display: Seat adjustment
How to use the controls
If you turn the multi-function button -1-
fig.► to the left or right, the possible seat adjustment settings -A- will appear on the infotainment display
Fig. 57►.
To select a seat adjustment setting, turn the multi-function button -1- in the appropriate direction until the desired setting is highlighted by a red border.
The arrows -B- indicate the possible adjustment options. For example, to move the lumbar support downwards, press the lower part of the multi-function button -1-. The corresponding arrow -C- will light up.
The following seat adjustment settings -A- are possible:
Massage function* - Select the massage type: Wave, Stretch, Knead or Off. You can vary the intensity of the massage from 1 to 3. The selected massage function is switched on and off with button -B-
Fig. 57►.
Lumbar support - Lumbar support up/down and in/out.
Note
The massage function switches off automatically after 10 minutes.
