Audi Q5Setting off Doors and windowsBoot lid
Applies to: vehicles with power-operated boot lid
The boot lid can be opened and closed automatically.
Fig. 28 Driver s door: Opening boot lid
Fig. 28 Driver s door: Opening boot lid

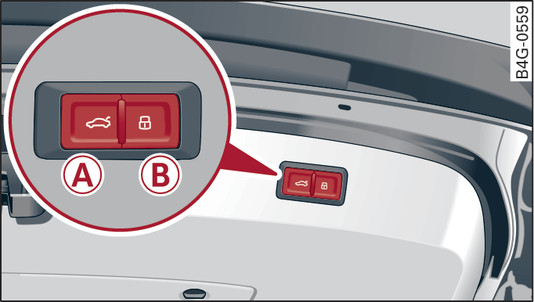

Fig. 29 Boot lid: -A- close button, -B- lock button (vehicles with convenience key*)
Fig. 29 Boot lid: -A- close button, -B- lock button (vehicles with convenience key*)
Opening boot lid
Press the button on the vehicle key for at least one second. Or:
Press the release catch on the boot lid. The vehicle key must be within a range of about 1.5 metres from the luggage compartment. Or:
Briefly pull the button in the driver s door Fig. 28.
Closing boot lid
With the ignition switched on, pull and hold the button in the driver s door until the boot lid is closed . Or:
Press the button inside the boot lid Fig. 29. The boot lid will move down and close automatically . Or:
(Applies to vehicles with convenience key: ) Press and hold the button on the vehicle key until the boot lid closes . Make sure to stand clear of the boot lid when doing so. The distance from the rear of the vehicle should be not more than 3 metres. Or:
(Applies to vehicles with convenience key: ) Press the button inside the boot lid Fig. 29. The vehicle key should be within a range of about 1.5 metres from the luggage compartment and should not be inside the vehicle. The boot lid will move down and close automatically. The vehicle will be locked . Or:
(Does not apply to Security models: ) Pull the boot lid gently by the handle on the inside. The boot lid will move down and close automatically . Or:
Press the release catch on the boot lid. The boot lid will move down and close automatically .
Storing the open position of the boot lid
Open the boot lid as far as desired. The boot lid must be opened at least as far as the minimum open setting, otherwise it will not be possible to store the setting.
Press the button on the inside of the boot lid for at least four seconds to store the desired open position. A visual and audible signal will be given.
To set a higher open position, wait for five seconds and then push the boot lid carefully upwards.
Then press the button for at least four seconds again to store the desired open position.
The opening/closing of the boot lid will be interrupted immediately if:
  • You pull/release the button in the driver s door, or
  • (Applies to vehicles with convenience key: ) You press/release the button on the vehicle key, or
  • (Applies to vehicles with convenience key: ) You press the button or button inside the boot lid, or
  • You press the release catch on the boot lid, or
  • The boot lid cannot open/close freely or there is an obstruction.
If you now press the release catch or one of the buttons or (on vehicles with convenience key*), the boot lid will open or close again (depending on how far open it is).
WARNING
  • After closing the boot lid, always check that the catch has engaged properly. The boot lid could otherwise open suddenly when the vehicle is moving – this could result in an accident.
  • (Applies to vehicles with anti-theft alarm system: ) Do not leave anyone (especially children) in the car if it is locked from the outside and the safelock mechanism* is activated: the doors and windows cannot then be opened from the inside link. Locked doors could delay assistance in an emergency, potentially putting lives at risk.
  • Always be careful when closing the boot lid. A safety feature is provided (pinch protection), but this may not always be able to prevent serious injuries to yourself or others in all circumstances.
  • To prevent any risk of injury, always make sure that no one is in the path of the boot lid – in particular around the hinges and the upper and lower edges.
  • The boot lid must always be completely closed when the vehicle is moving; otherwise toxic exhaust fumes can be drawn into the interior.
  • If a luggage rack (e.g. a bicycle carrier) is attached to the boot lid, the boot lid may not open completely or may move downwards by itself due to the added weight. For this reason, make sure you support the boot lid or take the luggage off the carrier before opening the boot lid – risk of injury!
CAUTION
To avoid damage, please take care that the boot lid does not hit the ceiling when opening it inside a garage or car park, etc.
Note
  • In the infotainment settings, you can select whether the luggage compartment can be opened using the release catch on the boot lid link.
  • Acoustic signals will be given while you are closing the boot lid with the vehicle key (on vehicles with convenience key*) or via the button in the driver s door.
  • When the vehicle is locked, you can unlock the boot lid separately by pressing the button on the vehicle key. The boot lid will lock automatically when you close it again.
  • (Applies to vehicles with convenience key: ) You must be within approx. 3 metres of the vehicle to close the boot with the vehicle key.
  • If the battery is low, the boot lid can still be opened and closed manually; however, this will require more effort. If you move the boot lid slowly less effort will be required.
  • When the trailer socket is connected (e.g. to a bicycle rack) you can open the boot lid via the release catch on the handle or by foot gesture (on vehicles with convenience key*).
