Applies to: vehicles with plug-in hybrid drive

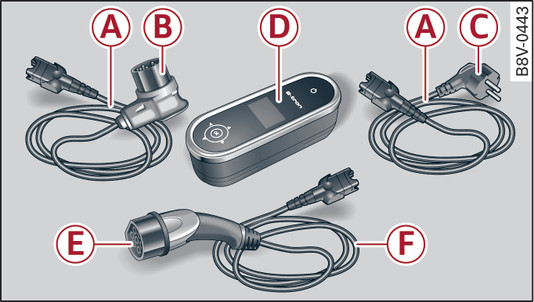

- Fig. 128 Overview of Audi e-tron charging system
-A- Mains cable
-B- Mains plug (for industrial power outlets)
-C- Mains plug (for domestic power outlets)
-D- Operating unit
-E- Vehicle charging connector (for plugging into vehicle)
-F- Vehicle cable
The mains cable -A- is plugged into the top end of the operating unit and the vehicle cable -F- is plugged into the bottom end of the operating unit -D-.
CAUTION
The charging system can be operated at temperatures between -25 ℃ and +35 ℃. Please note the following:
- The charging system should be protected so that it cannot be run over, dropped, pulled, bent or crushed.
- During operation, it is advisable to keep the operating unit in the charging dock*link►/charging clip* link►.
- Do not immerse the operating unit in water and do not allow it to be covered by snow or ice.
Note
- Always place the Audi e-tron charging system on a firm, stable surface when charging.
- To prevent overheating during use, do not expose the Audi e-tron charging system to direct sunlight for long periods of time.
- At temperatures above 80 ℃ inside the operating unit, the charging cycle is automatically interrupted until the temperature drops again to within the normal range.
