Applies to: vehicles with plug-in hybrid drive and charging clip
Hooking the charging system in the charging clip
Hook the operating unit into the retainers on the charging clip, first at the bottom, then at the top.

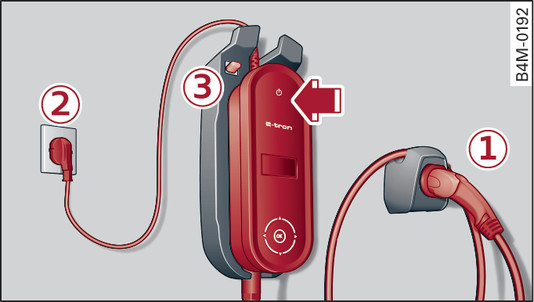

Press the operating unit back -arrow- Fig. 132► so that it engages.
Wind any excess length of cable around the charging connector mounting -1-.
Plug the mains cable into the power outlet -2-.
Removing the charging system from the charging clip
Unplug the mains cable connector from the power outlet -2-.
Unwind the cable from the vehicle charging connector -1-.
To release the operating unit from the holder, press the locking mechanism -3- upwards Fig. 132►.
