Applies to: vehicles with top tether
-

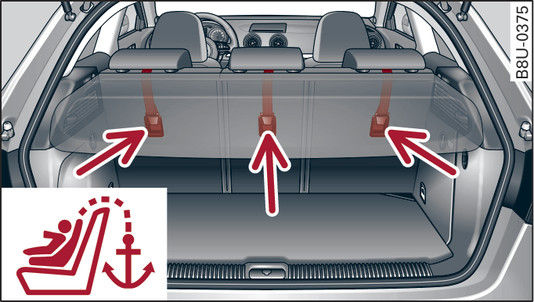

- Fig. 267 Rear backrest: Top tether anchorages
-

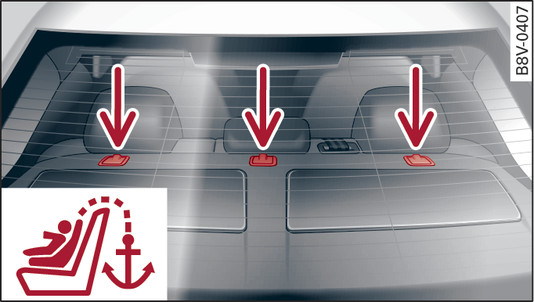

- Fig. 268 Applies to: SaloonRear backrest: Top tether anchorages
Applies to: vehicles without soft top
Adjust the head restraint behind the child seat to the fully extended position.
Push the mountings on the child seat into the ISOFIX anchorages until they engage audibly link►
.
Pull on the child seat to check whether both sides have engaged properly.
Guide the top tether strap of the child seat underneath or past both sides of the head restraint (depending on the type of child seat) towards the rear.
Pull the tether strap tight so that the top of the child seat rests securely against the backrest.
Applies to: vehicles with soft top
Adjust the head restraint behind the child seat to the fully extended position.
Fold down the backrest link►
.
Guide the top tether strap of the child seat underneath or past both sides of the head restraint (depending on the type of child seat) towards the rear.
Hook the strap of the child seat into the top tether anchorage Fig. 267►
.
Make sure that the belt does not become trapped in the seat retainer on the backrest.
Push the backrest up until it engages securely.
Push the mountings on the child seat into the ISOFIX anchorages until they engage audibly link►
.
Pull on the child seat to check whether both sides have engaged properly.
Pull the tether strap tight so that the top of the child seat rests securely against the backrest.
WARNING
- The anchorages in the vehicle are designed only for one child seat with ISOFIX and top tether. Do not attempt to secure other types of child seat, seat belts or other objects to these anchorages - this could result in serious or possibly fatal injury.
