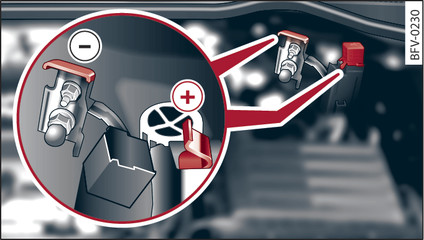

- Fig. 219 Engine compartment: Terminals for jump leads and battery charger
Important: Only use chargers with a maximum charge voltage of 14.8 V (the battery cables do not have to be disconnected).
Switch off all electrical equipment and the ignition.
Open the bonnet link►.
Open the red cap on the positive terminal Fig. 219►.
Connect the charger cables to the jump-start terminals as specified Fig. 219►.
Now connect the battery charger to the mains and switch on.
After charging the battery: switch off the battery charger and disconnect the mains cable.
Detach the charger cables from the terminals.
Refit the red cap onto the positive terminal.
Close the bonnet link►.
- A highly explosive mixture of gases may be given off when the battery is under charge. Only charge the vehicle battery in a well ventilated area.
- When it is discharged the vehicle battery can freeze at temperatures around 0°C. You must not use a vehicle battery which has frozen, even after it has thawed, because the ice may have cracked the battery casing and allowed the battery acid to escape - risk of explosion and chemical burns! Please contact a qualified workshop if you have any questions.
- Do not connect or disconnect the charging cables during the charging process - risk of explosion!
Note
- Use only the terminals in the engine compartment to charge the vehicle battery.
- Before you charge the vehicle battery, always read and follow the manufacturer s instructions for using the battery charger.
