Main components for checking and refilling

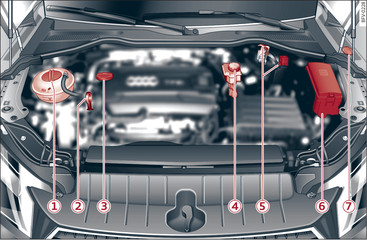

Fig. 214 Typical locations of fluid containers and engine oil filler cap
Fig. 214 Typical locations of fluid containers and engine oil filler cap
-1- Coolant expansion tank ( ) link
-2- Engine oil dipstick link
-3- Engine oil filler cap ( ) link
-4- Brake fluid reservoir ( ) link
-5- Jump-start terminals: under a cover (+); earth point on body (-) link
-6- Fuse box link
-7- Windscreen washer container ( ) link
The positions of the engine oil dipstick and engine oil filler cap Fig. 214 (items -2- and -3-) may be different on some engine versions.
