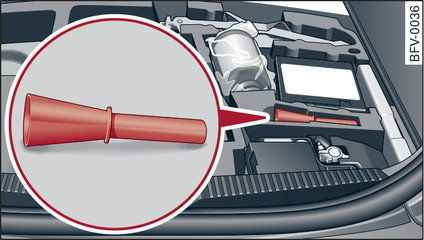

- Fig. 209 Luggage compartment: Funnel
-

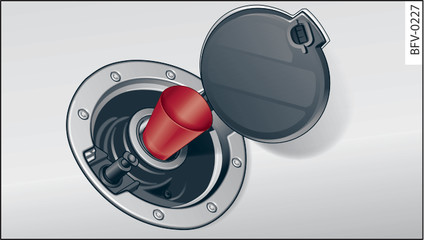

- Fig. 210 Funnel inserted in tank opening
Please refer to the important safety notes ►.
Press the tank flap -arrow- Fig. ► to open it.
Take out the floor panel link►.
Remove the plastic base panels Fig. ►.
Take the funnel out of the luggage compartment.
Insert the funnel into the fuel filler neck as far as the stop Fig. 210►. The funnel should be inserted so far into the fuel filler neck that the ring on the funnel is not visible.
Insert the filler of the spare fuel canister into the funnel and start fuelling.
After fuelling, remove the funnel and close the fuel tank flap so that it locks in place.
CAUTION
Remove any fuel spills from the paintwork immediately.
