Applies to: vehicles with parking system plus/park assist
The parking system plus provides acoustic and visual assistance when parking.
-

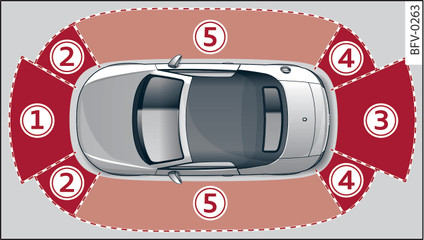

- Fig. 106 Diagram
Sensors are located in the front and rear bumpers. When the sensors detect an obstacle, you are alerted by acoustic signals (beeps) and a graphic display.
Please ensure that the sensors are kept free of stickers, deposits and any other substances which could impair the function of the system. Notes on cleaning link►.
Approximate range for each display zone:
|
-1-
|
1.20 m |
|
-2-
|
0.90 m |
|
-3-
|
1.60 m |
|
-4-
|
0.90 m |
|
-5-*
|
0.90 m1) |
The acoustic signals sound with increasing frequency as you approach the obstacle. A warning tone will sound continuously when the vehicle is less than approx. 0.30 m away from the obstacle (or less than approx. 0.20 m away in zone -5-*). Stop moving immediately ►, ►!
The volume of the warning beeps will be gradually reduced after about four seconds if the vehicle remains at a constant distance from a detected obstacle (it will not be reduced if the obstacle is closer than 0.30 m).
Note
Zone -5-* is detected and analysed as the vehicle is moving past. When you switch on the ignition or after the vehicle has been stationary for a while or a door is opened, the ambient surroundings may have changed. Zone -5-* is displayed in black on the infotainment system for this reason.
