Applies to: vehicles with lap timer
-

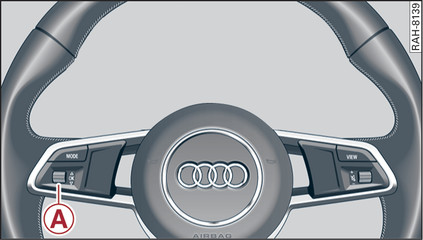

- Fig. 97 Multi-function steering wheel: Controls
-

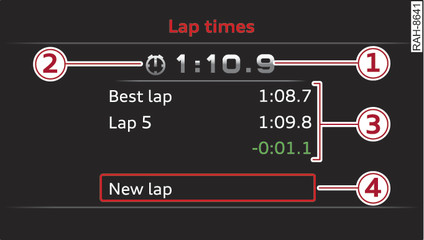

- Fig. 98 Instrument cluster: Lap timer
Calling up the lap timer
Select the following on the infotainment system: MENU button > Car > left control button > Lap times.
Scroll the thumbwheel -A- Fig. 97► until Start lap 1 by driving off or Start by driving off
Fig. 98► appears.
Press the thumbwheel -A- to confirm your selection.
Recording lap times
To finish measuring the current lap time, press the thumbwheel -A- on the menu item New lap. The next lap time starts running immediately. The previous lap time moves to the top of the display -1-. The current lap time is shown in the centre line in area -3-.
The
symbol will stay green if the current lap time is the best time so far. The
symbol will turn red if the lap time is not as good -2-.
symbol will stay green if the current lap time is the best time so far. The
symbol will turn red if the lap time is not as good -2-.Displaying split times and interrupting the lap timer for a break
To display a split time
, scroll the thumbwheel -A- until Split time appears in line -4-. Press the thumbwheel -A- to confirm your selection. The split time appears in area -3- for approximately 10 seconds. The current lap time continues running in the meantime.
, scroll the thumbwheel -A- until Split time appears in line -4-. Press the thumbwheel -A- to confirm your selection. The split time appears in area -3- for approximately 10 seconds. The current lap time continues running in the meantime.
If you want to take a break (pause
) immediately after displaying the split times, first press the thumbwheel -A- to confirm the menu item Back - select OK.
) immediately after displaying the split times, first press the thumbwheel -A- to confirm the menu item Back - select OK.
To pause the timer, scroll the thumbwheel -A- until Pause appears in line -4-. Press the thumbwheel -A- to confirm your selection. The pause symbol
appears in area -3-.
appears in area -3-.
Press the thumbwheel -A- to resume the lap time.
If you interrupt the lap timer to take a break, you can resume recording later on, even if you switched off the ignition in the meantime.
Legend for infotainment display Fig. 98►:
|
-1-
|
Last recorded lap time |
|
-2-
|
Symbols: -  : Start time - : Worst lap time - : Best lap time - : Split time - : Pause |
|
-3-
|
Current lap time |
|
-4-
|
Menu: - Start lap 1 by driving off (start lap) - Start by driving off (start lap) - New lap (start another lap) - Split time (lap sector time) - Pause (interrupt lap timer) - Cancel lap - Reset timer (zero all lap times) |
