Applies to: vehicles with load-through hatch and removable ski bag
The bag can be used to transport long items (such as skis).

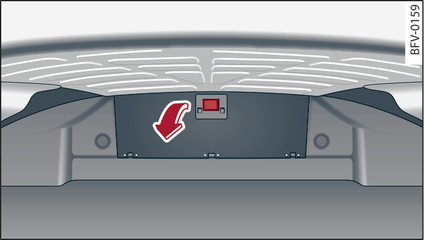

Fig. 61 Luggage compartment: Cover
Fig. 61 Luggage compartment: Cover

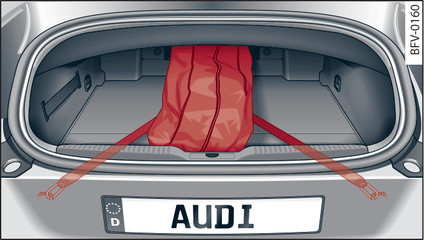

Fig. 62 Luggage compartment: Securing the bag
Fig. 62 Luggage compartment: Securing the bag
Loading
Open the flap for the storage compartment between the backrests link►.
Open the boot lid.
Press the release catch and fold down the cover for the load-through hatch towards the luggage compartment Fig. 61►.
Push the bag (with the zip pointing towards the rear of the vehicle) from the luggage compartment into the passenger compartment ►.
Load up the ski bag.
Securing the bag
Hook each of the attachments on the two fastening belts into the corresponding rear fastening ring Fig. 62►.
WARNING
The bag must be strapped in place with the two fastening belts after it has been loaded.
Note
  • Fold up the bag only when it is dry.
  • Place skis in the bag with their tips facing forwards and ski poles with their tips facing backwards.
