Applies to: vehicles with electric seat adjustment
-

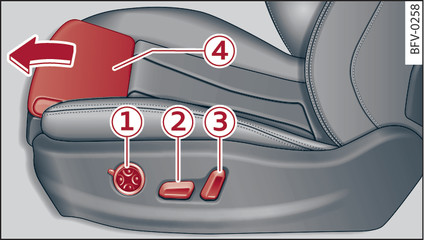

- Fig. 53 Front seat: Electric adjustment
-1- - Lumbar support or multi-function button*
link►. To adjust the lumbar support, press the appropriate side of the button.
-2- - Seat height: Press the button up/down. To adjust the front of the seat cushion, press the front of the button up/down. To adjust the rear of the seat cushion, press the rear of the button up/down.
-2- - Seat forwards/backwards: Press the button forwards/backwards.
-3- - Backrest angle: Press the button forwards/backwards.
-4- - Thigh support*: Lift the handle and move the thigh support in or out.
WARNING
- Never adjust the front seats when the vehicle is moving - this could lead to an accident.
- The electric front seat adjustment also works when the ignition is off. To avoid accidental injuries, never leave children unattended in the vehicle.
- Be careful when adjusting the seat height. Careless or uncontrolled use of the height adjustment can cause injuries.
- Do not drive with the backrests of the front seats reclined too far as otherwise the seat belt and airbag could fail to restrain the wearer properly in an accident, possibly leading to injury.
