Applies to vehicles with multi-function steering wheel plus
The multi-function steering wheel plus* has 14 buttons. You can use it to control the driver information system and MMI functions, adjust the volume and switch the speech dialogue system* on/off.

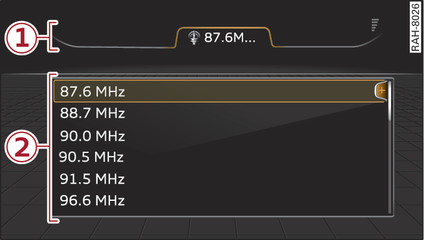

Fig. 7 Infotainment display view
Fig. 7 Infotainment display view

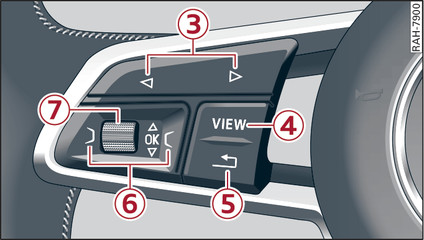

Fig. 8 Multi-function steering wheel (left side)
Fig. 8 Multi-function steering wheel (left side)
Important: The ignition must be switched on.
The driver information system shows information -2- in several display tabs -1-.
The equipment installed on your vehicle determines which of the following tabs are available:
1st tab
Car link
2nd tab1)
Warnings
3rd tab
Radio link
Media link
4th tab
Telephone* link
5th tab
Navigation* link
Map* link
6th tab2)
Sound link
Audi connect* link
Settings link
-3- button
  • To switch between tabs: Press the left/right side of the button (e.g. to call up radio functions).
-4- VIEW button
To change views: Press the VIEW button to switch from the classic view Fig.  to the extended view Fig. .
-5- button
To return to the previous function level.
-6- Control buttons and
To call up/close the selection menu or options menu link.
-7- Left thumbwheel
  • To select a function in a menu/list: Scroll the left thumbwheel to the desired function in a menu or list (e.g. to select a radio station or lap times*).
  • To confirm your selection: Press the left thumbwheel (e.g. to tune to the radio station).
  • To zoom in/out of the map: When a map is shown on the display, scroll the left thumbwheel up/down to make the map scale larger or smaller.
