Applies to: vehicles with Audi active lane assist
-

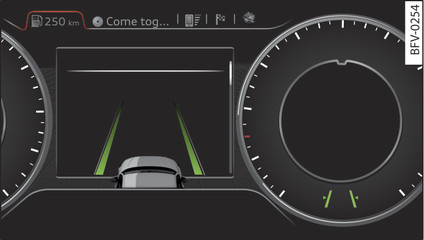

- Fig. 89 Instrument cluster: active lane assist switched on and ready to warn
You can use the controls on the multi-function steering wheel to call up the active lane assist display link►.
|
Green line(s)
|
The active lane assist is switched on and ready to warn. |
|
Red line(s)
(left or right) |
The active lane assist warns you before you cross the lane demarcation Fig. 89►. In addition, the steering wheel vibrates slightly. |
|
Grey line(s)
|
The active lane assist is switched on but not ready to warn. |
Driver messages on the infotainment display
Should the active lane assist be deactivated automatically, the indicator lamp on the display will go out and one of the following messages will appear:
Audi active lane assist: currently unavailable. Camera view restricted due to surroundings.
This message is displayed when the camera is no longer functional after the system has continuously failed to detect the lane markings. This can have the following causes:
- The outside of the camera window Fig. ► is dirty or frosted. Remove dirt or ice from this area of the windscreen.
- The inside of the camera window is misted up. In this case, wait for the camera window to demist before switching on the active lane assist system again.
- Due to the road conditions, the system has not been able to detect the lane markings for a long period. Do not switch the active lane assist system on again before the lane markings are discernible.
Audi active lane assist: currently unavailable. See owner s manual
A temporary fault is preventing the active lane assist system from being switched on. Try switching on the active lane assist system again later.
Audi active lane assist: fault. See owner s manual
Drive to a qualified workshop soon and have the fault rectified.
Audi active lane assist: please take over steering
This message will appear if you do not steer the vehicle yourself. In this case, the active lane assist will switch to “not ready for warning” but will not be deactivated completely. The system can assist you to keep the vehicle in the lane. However it is your own responsibility to steer and control the vehicle.
WARNING
Please note that the messages only appear with a delay or are not displayed at all on vehicles with additional equipment (such as steering wheel knobs) fitted on the steering wheel. Always keep your hands on the steering wheel.
