Applies to: vehicles with automatic gearbox
-

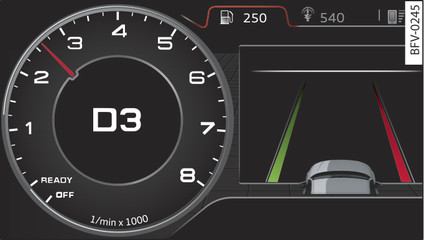

- Fig. 72 Instrument cluster: Selector lever positions
The current selector lever position and the current gear are shown in the infotainment display.
P – Parking lock
The parking lock must only be engaged when the vehicle is stationary
►.
The interlock button (the button in the selector lever handle) must be pressed in and the brake pedal must be depressed before moving the selector lever either in or out of position P.
Reverse gear should only be engaged when the vehicle is stationary and the engine is idling
►.
To move the selector lever to position R, press in the interlock button and at the same time press the brake pedal. The reversing light comes on when the selector lever is in the R position with the ignition on.
N – Neutral
In this position, the gearbox is in neutral.
D/S – Drive/Sport (standard position for driving forwards)
In selector lever position D/S, the gearbox can be operated in either the standard drive mode (D) or in sport mode (S). To select sport mode (S), briefly pull the selector lever back. The gearbox will switch back to drive mode (D) if you pull the selector lever again. The selected driving mode is shown on the infotainment display.
In the standard drive mode (D), the gearbox automatically selects the best gear ratio. This depends on the engine load, the road speed and the driving style.
Select sport mode (S) if you wish to take full advantage of the car s performance. This setting makes use of the engine s maximum power output. When accelerating the gear shifts may be noticeable.
Press the brake pedal when moving the selector lever from N to D/S if the vehicle is stationary or at speeds below 2 km/h
►.
E – Efficiency*
In efficiency mode link►,
the gearbox selects the next gear at lower engine speeds. Earlier upshifts give improved fuel economy because the full power reserves of the engine are not used.
In this mode, E is shown on the display instead of D Fig. 72►.
- Before driving off, check that the desired position is displayed next to the selector lever.
- The car can roll away even if the ignition is switched off.
- Never move the selector lever to R or P when driving, as this could cause an accident.
- In all selector lever positions except P the vehicle must always be held with the foot brake when the engine is running. This is because an automatic gearbox still transmits power even at idling speed, and the vehicle tends to “creep” - risk of accident!
- The accelerator pedal must on no account be pressed inadvertently when a gear is engaged with the vehicle stationary. The vehicle could otherwise start moving immediately (in some cases even if the parking brake is engaged) and possibly cause an accident.
- Do not press the accelerator while selecting a gear with the vehicle stationary and the engine running, as this could cause an accident.
- The driver should never get out of the vehicle when the engine is running and a gear is engaged. If you have to leave your vehicle while the engine is running, you must apply the parking brake and engage the parking lock P.
- To avoid accidents, apply the parking brake and put the selector lever in position P before opening the bonnet and working on the vehicle with the engine running. Please observe the important safety warnings link►.
Note
- Drive select: You can select the sport program for gear changes by activating the dynamic mode. The infotainment display will show S instead of D.
- If the lever is moved accidentally to N when driving, take your foot off the accelerator and let the engine speed drop to idling before selecting D or S again.
