Main components for checking and refilling

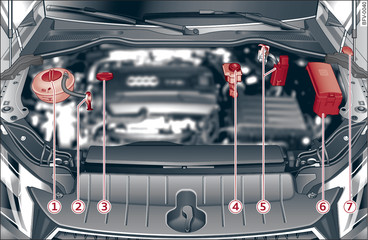

Fig. 221 Typical locations of fluid containers and engine oil filler cap
Fig. 221 Typical locations of fluid containers and engine oil filler cap
-1- Coolant expansion tank ( ) ►
-2- Engine oil dipstick ►
-3- Engine oil filler cap ( ) ►
-4- Brake fluid reservoir ( ) ►
-5- Jump-start terminals: under a cover (+); earth point on body (-) ►
-6- Fuse box ►
-7- Windscreen washer container ( ) ►
The positions of the engine oil dipstick and engine oil filler cap Fig. 221► (items -2- and -3-) may be different on some engine versions.
