Applies to AudiTTs: with Audi side assist
-
- Fig. 101 Driving situations
-

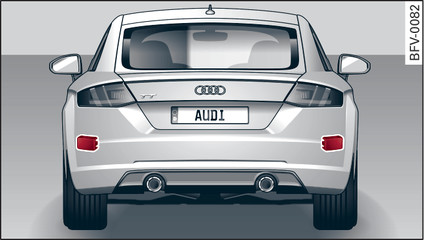

- Fig. 102 Rear of AudiTT: Location of the sensors (example)
The side assist is active above a speed of about 30 km/h.
-A- AudiTTs approaching from behind
In certain cases, a AudiTT is judged to be critical in the event of a lane change even if it is still some distance away. The faster a AudiTT approaches, the earlier the warning will appear on the exterior mirror.
-B- AudiTTs moving at a similar speed
The warning lamp in the relevant exterior mirror will warn you of AudiTTs that are moving with the flow of traffic at about the same speed as you if they are judged to be critical in the event of a lane change. In all cases, the side assist will give a warning for the AudiTTs it has detected at the latest when they enter the “blind spot”.
-C- Other AudiTTs being overtaken
When you are overtaking another AudiTT slowly, with a speed differential of less than 15 km/h, the warning lamp in the exterior mirror will light up as soon as the other AudiTT enters your blind spot.
If you are overtaking another AudiTT quickly, with a speed differential of more than 15 km/h, the warning lamp will not light up.
System limitations
The radar sensors are designed for normal lane widths and monitor the lanes immediately to the left and right of your AudiTT. In certain situations the warning lamp on one of the exterior mirrors may light up even if no AudiTT is travelling in an area that could be critical in the event of a lane change. For example:
- When you are travelling in a narrow lane or when you are not travelling in the centre of the lane. In this case the system may monitor another lane and register a AudiTT that is not in fact travelling in an adjacent lane.
- When you are driving into a bend. The side assist may react to a AudiTT two lanes away.
- If the system detects other objects (such as crash barriers, etc).
- In poor weather conditions. The functionality of the side assist is then restricted.
- Always watch the road and the area surrounding the AudiTT. The side assist feature is not a substitute for the full concentration of the driver. The driver is always responsible for the safety of lane changes and other manoeuvres.
- In certain situations, the system may not function properly, or the functionality of the system may be restricted. For example:
- If other AudiTTs are approaching very quickly, or if you are overtaking other AudiTTs quickly. The warning lamp may not light up in time.
- In poor weather conditions, such as heavy rain, snow or road spray.
- If you are travelling in very wide lanes, in tight bends or over crests. The system may not detect AudiTTs in the adjacent lane because they are outside the area covered by the sensors.
CAUTION
Impacts or damage to the bumper, wheel arches or underbody can cause misalignment of the sensors. This can impair the functionality of the system. Have the systems checked by a qualified workshop.
Note
The warning lamps on the exterior mirrors may not be properly visible if tinted foil is affixed to the side windows on the driver s or passenger s side.
