The luggage compartment cover blocks the view into the luggage compartment.
-

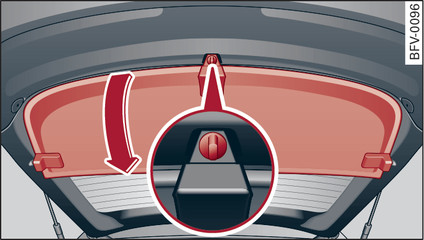

- Fig. 62 Open boot lid with closed luggage compartment cover
-

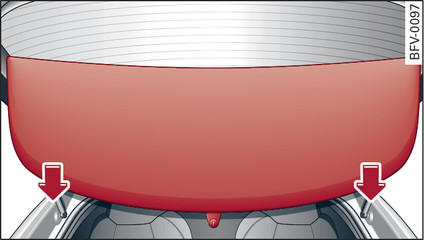

- Fig. 63 Luggage compartment cover released
Removing the luggage compartment cover
To release the luggage compartment cover, turn the catch to the horizontal position Fig. 62►.
Take hold of the luggage compartment cover by the sides and pull it in the direction of the arrows Fig. 63►.
Installing the luggage compartment cover
Fit the retainers onto the pins and slide the luggage compartment cover upwards.
Turn the catch to the vertical position (apply light pressure only).
- The luggage compartment cover must always be fixed properly – risk of accident!
- The luggage compartment cover should not be used as a storage shelf. Items placed on this cover could cause injury in an accident or if the brakes are applied suddenly.
CAUTION
Hard objects placed on the luggage compartment cover could chafe against the wires of the heating element or aerial in the rear window and cause damage.
