Applies to AudiTTs: with multi-function steering wheel plus
The multi-function steering wheel plus* has 14 buttons. You can use it to control the driver information system and MMI functions, adjust the volume and switch the speech dialogue system* on/off.
-
- Fig. 6 Infotainment display view
-

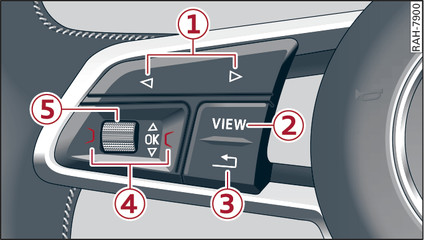

- Fig. 7 How to use multi-function steering wheel
Important: The ignition must be switched on.
-1-
button
button- To switch between tabs: Press the left/right side of the
button (e.g. to call up radio functions).
The driver information system shows information -B- in several display tabs -A-.
The equipment installed on your AudiTT determines which of the following tabs are available:
-2- VIEW button
-3-
button
button- To return to the previous function level: Press the button.
-4- Control buttons > and <
- To call up the selection menu: Press the left control button.
- To call up the options menu: Press the right control button.
- To select a function in a menu/list: Scroll the left thumbwheel to the desired function in a menu or list (e.g. to select a radio station or lap times*).
- To confirm your selection: Press the left thumbwheel (e.g. to tune to the radio station).
- To zoom in/out of the map: When a map is shown on the display, scroll the left thumbwheel up/down to make the map scale larger or smaller.
