Instruction book Audi R8 Version year 2015
►Audi R8 Coupé ►Self-help ►Mobility ◀Tow-starting / towing away

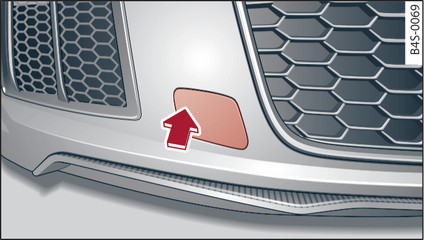

Fig. 185 Front bumper: Cover cap
Fig. 185 Front bumper: Cover cap

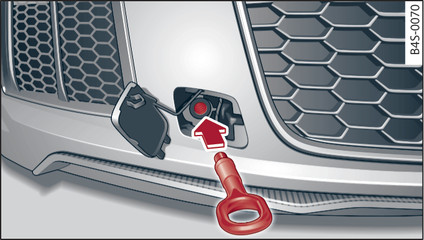

Fig. 186 Front bumper: Fitting the towline anchorage
Fig. 186 Front bumper: Fitting the towline anchorage
The screw connection for the towline anchorage is located behind a cover cap on the right side of the front bumper.
Take the towline anchorage out of the vehicle s tool kit link►.
Firmly press the cap inwards Fig. 185►. The cover cap will be released from the bumper.
Screw the towline anchorage into the screw connection as far as it will go Fig. 186► and tighten it with the box spanner.
Put the towline anchorage back in the tool kit after use.
WARNING
If the towline anchorage is not screwed in as far as the stop, there is a risk of the screw connection shearing off during towing - risk of accident!
