The manual release ring is located underneath the trim behind the passenger s seat.

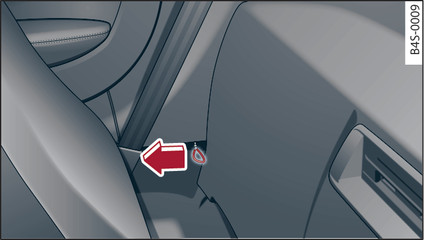

Fig. 160 Passenger s side: Manual release ring
Fig. 160 Passenger s side: Manual release ring
Pull the ring forward to release the engine lid. The engine lid will be opened ►.
