The MMI control console includes a rotary pushbutton with an integrated joystick function. You can use this to move the crosshairs on a map or to adjust the sound focus, for example.

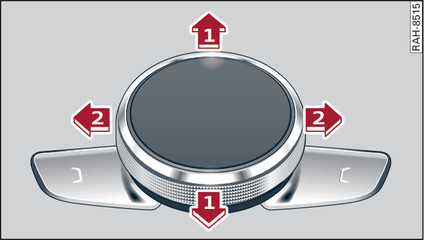

- Fig. 89 How to use the rotary pushbutton with joystick function
Push the rotary pushbutton to the left to call up the selection menu link►.
Press the BACK button -3- Fig. ► to return to the previous function. Or: Push the rotary pushbutton to the right to close the selection menu.
Push the rotary pushbutton to the right to call up the options menu link►.
Press the BACK button -3- Fig. ► to return to the previous function. Or: Push the rotary pushbutton to the left to close the options menu.
Displaying the entry field
Push the rotary pushbutton upwards to access the entry field or the beginning of a list in the central area.
Switching to the speller
If the entry field is already open, you can switch directly to entry via the speller by pushing the rotary pushbutton upwards again link►.
On the map
Important: A map must be displayed Fig. ►.
- To display the entry field: Push the rotary pushbutton upwards.
- To display the route: If route guidance is active, you can have the route displayed by pushing the rotary pushbutton upwards link►.
- To zoom in/out of the map: Turn the rotary pushbutton to the left/right to make the map scale larger or smaller.
Adjusting the sound focus
Important: The balance/fader option must be selected link►.
- To adjust the sound focus using the crosshairs: Press the rotary pushbutton to bring up the crosshairs. You can now move the crosshairs horizontally. To move the crosshairs vertically, press the rotary pushbutton again.
Operating the DVD main menu
Important: A video DVD must be playing link►.
- To select a menu option: Move the rotary pushbutton with joystick function up or down, or to the left or right.
- To confirm your selection: Press the rotary pushbutton.
Note
Please note that the control buttons are the other way around if Arabic is selected as the menu language.
