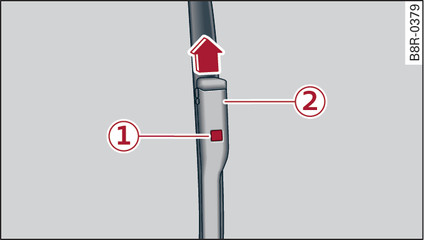

- Fig. 44 Removing the wiper blades
Service position / wiper change position
To move the windscreen wipers to the service position, switch off the ignition and move the windscreen wiper lever briefly to position -4- Fig. ►.
To move the windscreen wipers back to their original position, switch on the ignition and move the windscreen wiper lever to position -4- for at least 2 seconds Fig. ►.
Taking off the wiper blade
Lift the wiper arm away from the glass.
Press the release button -1- on the wiper blade Fig. 44►. Keep hold of the wiper blade while doing so.
Take off the wiper blade in the direction of the arrow.
Fitting the wiper blade
Fit the new wiper blade into the mounting on the wiper arm -2-. You should hear it engage in the wiper arm.
Fold the wiper arm back down onto the windscreen.
Switch off the service position again.
- The wipers must be in the service position before lifting them off the windscreen! Otherwise the wiper motor or the paintwork on the luggage lid may be damaged.
- Never drive your vehicle or operate the windscreen wiper lever while the wiper arms are off the glass in a raised position. The wipers will otherwise automatically return to their park position and may damage the luggage lid and windscreen.
Note
- You can also use the service position, for example, if you want to fix a cover over the windscreen in the winter to keep it clear of ice.
- You cannot activate the service position when the luggage lid is open.
