- Fig. 4 Driver information system: Classic view

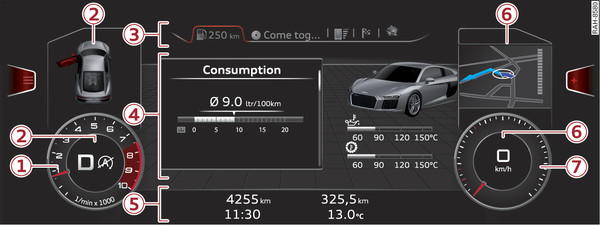

- Fig. 5 Driver information system: Extended view
The driver information system displays various components:
| -1- | Rev counter |
| -2- | Additional display on left (two separate sections in extended view) |
| -3- | Tab area |
| -4- | Central area |
| -5- | Status line (displayed on one or two lines) |
| -6- | Additional display on right (two separate sections in extended view) |
| -7- | Speedometer |
Do not rely on the outside temperature display as an ice warning. Bear in mind that there may be patches of ice on the roads even at outside temperatures around +5 ℃ – risk of accident!
Note
- You can change the measurement units for temperature or speed, etc. via the infotainment system.
- When the vehicle is stationary or travelling at very low speeds, the temperature displayed may be slightly higher than the actual outside temperature as a result of the heat radiated from the engine.
- At temperatures below +5°C a snowflake symbol appears next to the temperature display ►.
