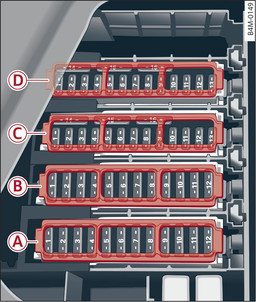

- Fig. 355 Luggage compartment, left side: Fuse carrier with plastic frames

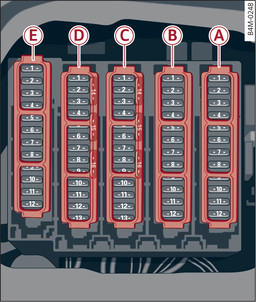

- Fig. 356 Luggage compartment, left side: Fuse carrier with plastic frames (plug-in hybrid drive*)
Fuse carrier -A- (black) | |
No. | Electrical equipment |
1 | Thermal management |
5 | Air suspension |
6 | Automatic gearbox |
8 | Seat heating, rear |
9 | Rear lights |
10 | Belt tensioner (left-side) |
11 | Central locking system |
12 | Power-operated boot lid |
Fuse carrier -B- (red) | |
No. | Electrical equipment |
1 | Rear blower control |
2 | Sound amplifier |
3 | AdBlue heating |
4 | A/C control console (rear) |
5 | Towing bracket (right lights) |
6 | Towing bracket motor |
7 | Towing bracket |
8 | Towing bracket (left lights) |
9 | Towing bracket (electrical socket) |
10 | Sport differential |
11 | AdBlue heating |
12 | Third row of seats |
Fuse carrier -C- (brown) | |
No. | Electrical equipment |
2 | Telephone |
3 | Lumbar support |
4 | Audi side assist |
5 | Rear Seat Entertainment |
6 | Tyre pressure monitoring system |
8 | Remote control receiver, auxiliary heater |
9 | CD / DVD drive |
10 | TV tuner |
12 | HomeLink |
13 | Reversing camera, surround view cameras |
14 | Right rear lights |
16 | Belt tensioner (right-side) |
Fuse carrier -D- (red) | |
No. | Electrical equipment |
1 | Electro-mechanical active roll stabilisation |
2 | High-voltage battery |
3 | Coolant pump (high-voltage battery) |
4 | Electric motor |
5 | Brake system |
7 | 12 Volt starter |
8 | Air conditioner compressor |
9 | 48 Volt battery |
10 | High-voltage battery |
11 | Charger |
14 | Thermal management |
Fuse carrier -E- (brown) | |
No. | Electrical equipment |
7 | Seat heating, front |
9 | AdBlue heating |
10 | Seat heating, rear |
12 | AdBlue heating |
