►Audi Q7 ► Infotainment ◀TV
Applies to: vehicles with TV
You can receive TV channels via the MMI system.

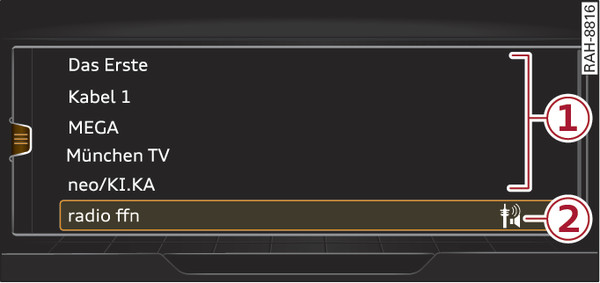

Fig. 273 Applies to: vehicles with DVB-T tuner TV channel list
Fig. 273
Applies to: vehicles with DVB-T tuner
TV channel list

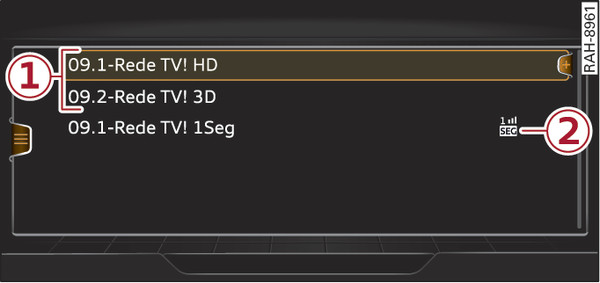

Fig. 274 Applies to: vehicles with ISDB-Tb tuner TV channel list
Fig. 274
Applies to: vehicles with ISDB-Tb tuner
TV channel list
Press the MEDIA button. Press the left control button repeatedly until the source overview is displayed.
Select TV > Channel list.
  • To select a channel: Select a channel from the channel list and confirm it. Or: Move the MMI control console s ON/OFF button to the left or right .
  • To switch from the TV picture to the channel list: Turn or press the rotary pushbutton.
Applies to: vehicles with DVB-T tuner
You can receive digital TV channels and radio stations in the DVB-T/DVB-T2 standard.

Applies to vehicles with ISDB-Tb tuner
You can receive digital TV channels in the ISDB-Tb1) standard2).

Applies to: vehicles with DVB-T tuner
The following information is displayed in the channel list Fig. 273►:
-1- TV channel
-2- Audio channel*

Applies to vehicles with ISDB-Tb tuner
The following information is displayed in the channel list Fig. 274►:
The high-resolution 12-segment TV channels -1- Fig. 274► are displayed at the top and the low-resolution 1-segment TV channels -2- Fig. 274► are displayed at the bottom of the channel list.

Note
  • For safety reasons, the TV picture is not available while the vehicle is moving. While you are driving, only the sound is played.
  • The digital terrestrial television network is not available in all countries nationwide. Please obtain information regarding terrestrial TV reception in the region you live in. Reception is dependent on a number of factors, e.g. the distance to the transmitter and the speed at which the vehicle is travelling.
  • The volume will automatically be muted if the TV reception becomes poor. The volume will be switched on again automatically if the TV reception quality improves.
  • Encrypted programmes/Pay TV channels are not supported.
  • The TV tuner supports the audio/video codec standards MPEG-2 and MPEG-4*. Standards such as HEVC, DVB via satellite (DVB-S) and DVB for hand-held devices (DVB-H) are not supported.
  • (Applies to vehicles with DVB-T tuner: )
  • The TV reception depends on digital network availability and DVB-T2 network parameters (DVB-T2 lite and multi-PLP networks are not supported). For more information, contact your network provider.
  • Television broadcasts are interrupted by traffic reports if the Traffic announcements* function is active link►.
