Applies to: vehicles with navigation system
-

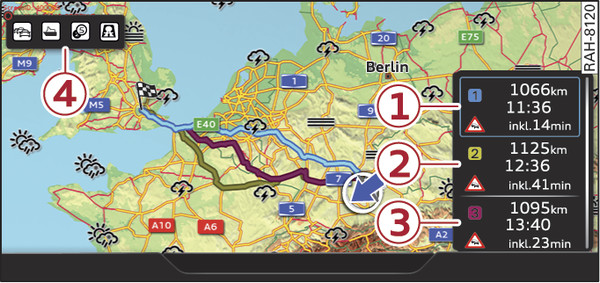

- Fig. 243 Diagram: Alternative routes shown on the overview map
Important: A destination must have been entered and you must have started route guidance.
Select: right control button > Navigation settings > Display alternative routes.
Three routes will be displayed on the overview map after you have entered a destination.
When this function is switched on
, up to three suggested routes and their characteristics are displayed on the overview map Fig. 243►.
, up to three suggested routes and their characteristics are displayed on the overview map Fig. 243►.
The following information (if available) is displayed in the route suggestions:
- Route type (fast -1-, alternative fast -2-, economical route -3-)
- Distance to destination and estimated time of arrival
- Level of congestion on the route including length of delay
The route which was calculated on the basis of the selected route criteria is highlighted on the overview map. Further information on particular characteristics of your route -4- Fig. 243► is also shown on the display and read out.
You can use the rotary pushbutton to preselect the possible alternative routes and have them displayed on the map. Select and confirm the route which you would like to use for route guidance.
