Applies to: vehicles with surround view cameras
-

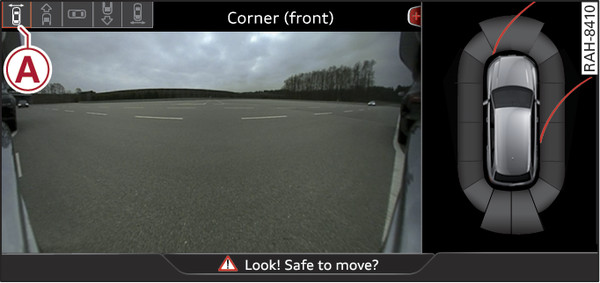

- Fig. 183 Infotainment display: Corner view (front)

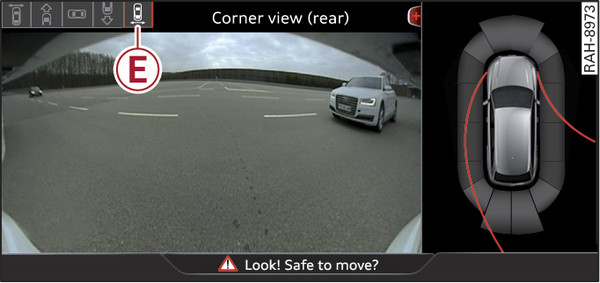

- Fig. 184 Infotainment display: Corner view (rear)
This view can be helpful, for instance, when driving out of a private property onto an obscured road. The picture shows the corner view in front of or behind the vehicle.
To display the corner view (front), select symbol -A- Fig. 183► using the rotary pushbutton and then press the rotary pushbutton.
To display the corner view (rear), select symbol -E- Fig. 184► using the rotary pushbutton and then press the rotary pushbutton.
