Audi Q7 Driver assistanc... Driver assist sy... Night vision as...
Applies to: vehicles with night vision assist

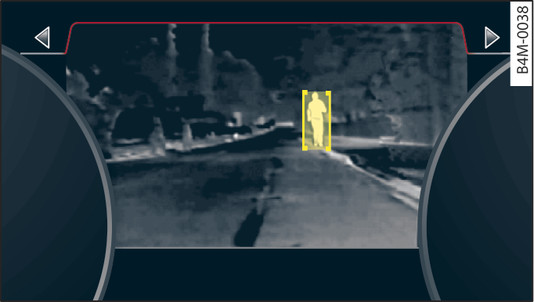

Fig. 162 Instrument cluster: Pedestrian highlighted in yellow
Fig. 162 Instrument cluster: Pedestrian highlighted in yellow

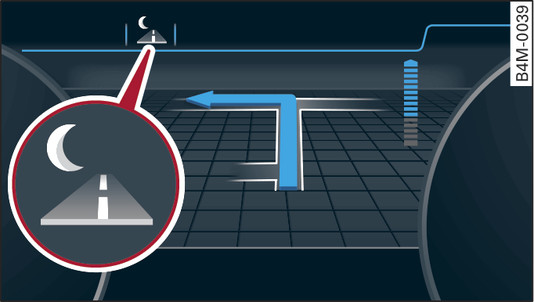

Fig. 163 Instrument cluster: Symbol when infrared image is not displayed
Fig. 163 Instrument cluster: Symbol when infrared image is not displayed
The night vision assist can distinguish pedestrians and wild animals within a range of about 10 to 90 metres in front of the vehicle, subject to certain system limitations. When the headlights are on after dark and the system successfully detects a pedestrian or wild animal (for system limitations refer to link), it highlights the person or animal visually in a yellow box Fig. 162. The animal detection feature is not activated in built-up areas. Only large wild animals, such as deer, are detected by the system.
Note
If the image from the night vision assist is hidden by another display (e.g. from the navigation system), the symbol Fig. 163 will appear in the display tab. You can use the controls on the multi-function steering wheel to call up the night vision assist link.
