Applies to: vehicles with plug-in hybrid drive and charging dock

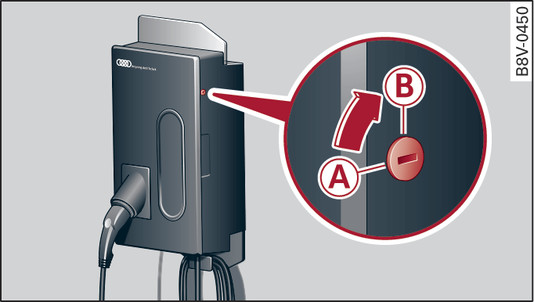

Fig. 116 Opening/closing the charging dock
Fig. 116 Opening/closing the charging dock

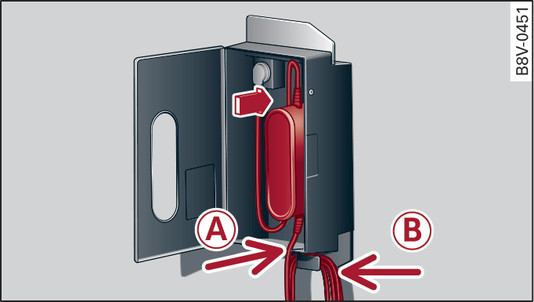

Fig. 117 Charging dock: Hooking on the charging system
Fig. 117 Charging dock: Hooking on the charging system
You can stow the charging system in the charging dock.
Opening/closing the charging dock
Use the key supplied to unlock -B- and lock -A- the charging dock Fig. 116►.
Open/close the door of the charging dock.
Hooking the charging system onto the dock
Open the door of the charging dock.
Hook the operating unit into the retainers on the charging dock, first at the bottom then at the top.
Press the operating unit back so that it engages.
Feed the vehicle cable through the opening -A- Fig. 117►.
Wind any excess length of cable around the adapter -B-.
Plug the mains cable into the power outlet in the charging dock.
Close the door.
After charging, you can hook the vehicle charging connector -E- Fig. ► into the retainer on the door of the charging dock Fig. 116►.
Removing the charging system from the charging dock
Open the door of the charging dock.
Remove the mains cable from the power outlet in the charging dock.
Unwind the cable from the adapter -B-.
To release the operating unit from the retainer, press the release rockers above the operating unit -arrow- Fig. 117►.
Note
  • Keep the door of the charging dock closed at all times.
  • Do not place loose objects on the door or the charging dock.
