►Audi Q7 ►Setting off ►e-tron ◀Plug-in hybrid drive
Applies to: vehicles with plug-in hybrid drive

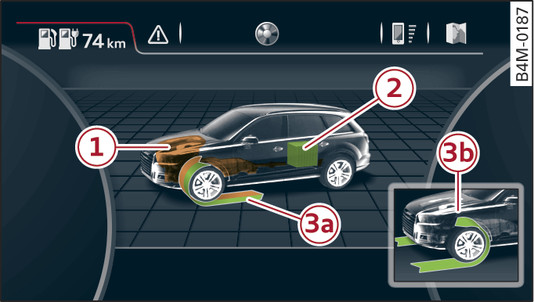

Fig. 104 Instrument cluster: Energy flow display
Fig. 104 Instrument cluster: Energy flow display
Fig. 105 Infotainment system: Energy flow display
Fig. 105 Infotainment system: Energy flow display
An energy flow display can be called up in the instrument cluster/infotainment display.
Instrument cluster display
Select the following on the multi-function steering wheel: left control button > Energy flow.
Infotainment display
Select the following on the infotainment system: MENU button > Car > Audi drive select.
Component
Colour
Meaning
-1- Combustion engine
orange
Combustion engine running
grey
Combustion engine off
-2- High-voltage battery
green
Charge level of the high-voltage battery
green
High-voltage battery being charged
grey
Vehicle not ready to be driven
-3a- Movement arrow
green
Electric driving
orange
Driving with combustion engine
green-orange
Driving with combustion engine and electric motor (boost)
-3b- Movement arrow
green
Recuperation
