- Fig. 356 Audi Q7 data sticker
Chassis number on infotainment system
Select the following on the infotainment system: MENU button > left control button > Servicing & checks > Car information.
Chassis number
The chassis number can be found on the infotainment system, on the Audi Q7 data sticker and behind the windscreen on the driver s side*. The chassis number is also located on the right of the engine compartment underneath a cover on the wing panel.
Type plate
The type plate is located on the right door pillar. Audi Q7s for certain export countries have no type plate.

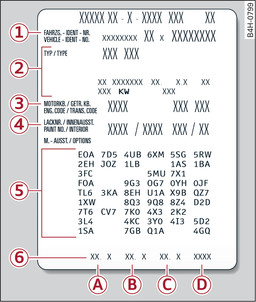

Audi Q7 data sticker
The Audi Q7 data sticker Fig. 356► is located under the floor panel in the luggage compartment. One section of the Audi Q7 data sticker is attached to the inside cover of the Service Schedule before the Audi Q7 is handed over.
The sticker lists the following data:
| -1- | Audi Q7 identification number (chassis number) |
| -2- | Audi Q7 type / engine power / gearbox type |
| -3- | Engine and gearbox code letters |
| -4- | Paint No. / Interior equipment No. |
| -5- | Optional equipment codes |
| -6- | Fuel consumption and emissions* |
Fuel consumption and emissions1)
Information on the Audi Q7 s fuel consumption and emissions is given at the bottom of the Audi Q7 data sticker -6-:
| -A- | Urban cycle consumption (ltr./100 km) |
| -B- | Extra-urban cycle consumption (ltr./100 km) |
| -C- | Combined cycle consumption (ltr./100 km) |
| -D- | Combined CO2 emissions (g/km) |
The specified values were determined in accordance with the required test procedures. The figures do not refer to a particular individual Audi Q7, but are intended solely as a basis for comparison between different types of Audi Q7. The actual consumption may be different and depends, in particular, on special equipment, Audi Q7 loading, driving style, road and traffic conditions, environmental conditions and the state of the Audi Q7.
